Product Details:
|
| Features: | Compatible SMEMA Interface | Application: | Link Conveyor For SMT Use |
|---|---|---|---|
| Description: | SMT Dual Rail Conveyor | Brand: | INFITEK |
| Model: | DC-050M-N, DC-100M-N | Warranty: | 1 Year Warranty |
| Reliability: | Design For Industrial Use | Packaging: | Wooden Box Package |
| Price: | Negotiable | ||
| High Light: | Dual Rail SMT Production Line,SMT Production Line Durable |
||

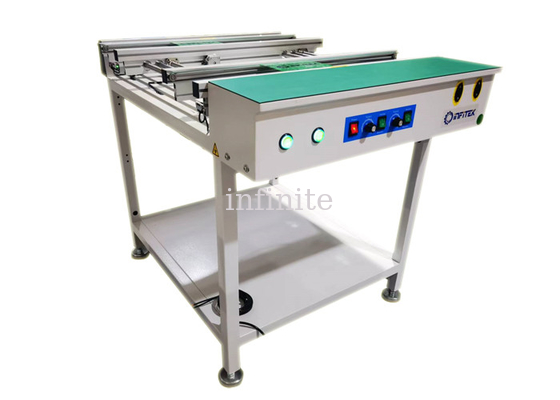

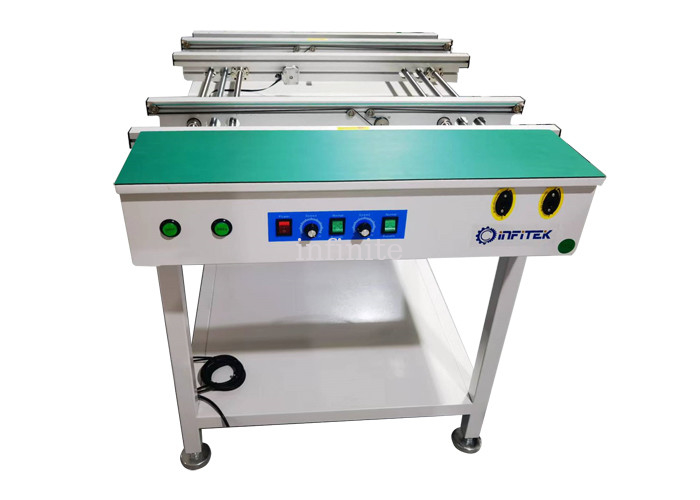

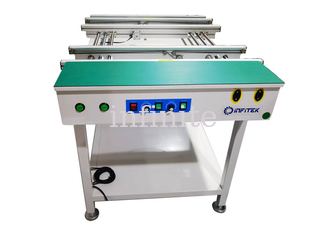

SMT DUAL RAIL CONVEYOR, Modular Design SMT Conveyor Systems, High-Quality, And Durable SMT Link Conveyors
SMT DUAL RAIL CONVEYOR is used for connection between double track SMT manufacturing equipment and can also be manually inserted by buffering, inspection, testing, or electronic components of the PCB. The INFITEK dual-rail PCB belt conveyor is SMEMA interface compatible. INFITEK series dual-rail conveyor's weighted design improves stability. This SMT conveyor system can be used or set in inspection mode and automatic mode. We can also customize our design depending on our customer's requirements.
FEATURES:
Features
Modular design
Stability enhanced by heavy design
Ergonomic design arm rest

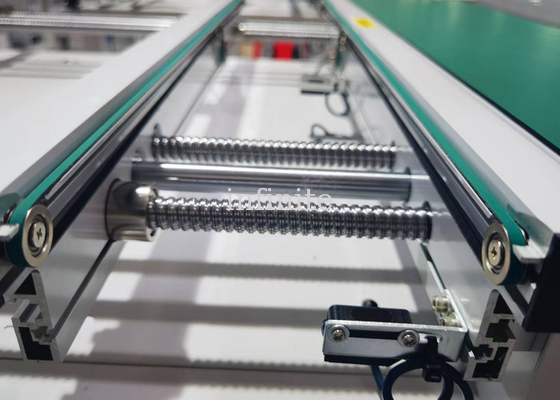

Smooth and parallel width adjustment(Stainless stell leadscrew)
Different lengths available upon request
Muti-zone concept available upon request
Variable speed control
SMEMA compatible
TECHNICAL PARAMETERS:
| Description | This device is equivalent to an SMD machine or operator testing station of PCB assembly equipment |
| Belt type | Use Round belt or oblate belt |
| Conveying speed | 0.5 to 20M/min or customer specified |
| Power supply | AC1P110V/220V |
| Power | Max100VA |
| Tran sport height | 900±20mm(0r customized) |

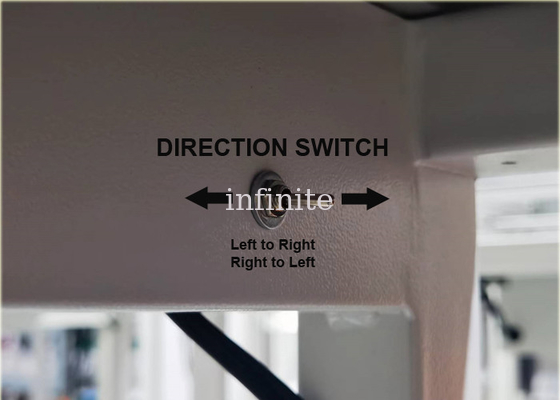

| Transport direction | From left to right or right to left |
SPECIFICATIONS:
| Model | Dimension (L*W*H MM) | PCB size (MM) | Weight (KG) |
| DC-050M-N | 500*1046*900 | 50*50-330*250 | 80 |
| DC-100M-N | 1000*1046*900 | 50*50-330*250 | 95 |
INFITEK Automation is focusing on providing alternative SMT Factory Automation and Production Solutions. We have a factory warehouse in China and offer sales of new and used SMT machines. INFITEK Automation provides full SMT assembly line solutions, we offer brand new and best conditions second-hand/pre-owned SMT machines and equipment-Solder Paste Printer, SMT Mounter, AOI, SPI, Link Conveyors, Industrial Cleaners, and all factory automation products.
