Product Details:
|
| Application: | Ergonomic Design Inspection Conveyor | Description: | 0.8M To 1M Single Rail High-End Inspection Conveyor With Dust Cover And LED Light - 650mm Max PCB Width |
|---|---|---|---|
| Brand: | INFITEK | Rail Width: | Adjustable Rail Width Up To 650mm |
| Available Length: | 0.8M, 1M - Or Specified | Warranty: | 1-year Warranty Period |
| Reliability: | Industrial Grade | Packaging: | Wood Exporting Package |
| Highlight: | Single Rail Conveyor PCB,High-End Conveyor PCB |
||

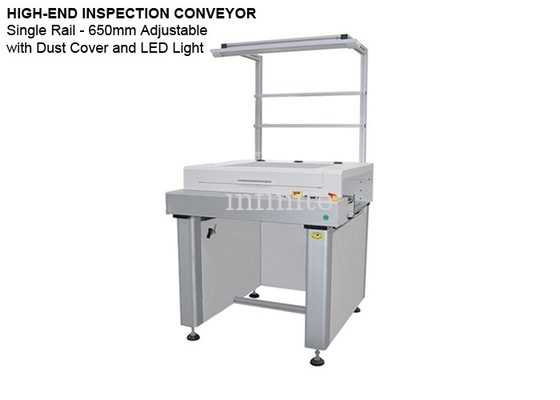

0.8M to 1M Single Rail High-End Inspection Conveyor with Dust Cover and LED Light - 650mm max PCB width
INFITEK 0.8M to 1M Single Rail High-End Inspection Conveyor with Dust Cover and LED Light is a modular design single rail PCB conveyor used in Single Lane SMT Production Line. It can accommodate a PCB with a maximum width of 650mm. This High-End Inspection conveyor can be used as an inspection conveyor with LED light included, and can also be a pass-through conveyor. Infinite Automation continues to develop equipment with a focus on helping the SMT Production Line process.
HIGH-END INSPECTION CONVEYOR WITH DUST COVER
Single Track - Automatic Rail Width Adjustment
Applicable PCB Size: 650mm max width
Conveyor Length: 0.8M, 1M - or specified
FEATURES:
| TECHNICAL PARAMETERS | |
| Description | This device is equivalent to an SMD machine or operator testing station of PCB assembly |
| Belt Type | Antistatic oblate belt |
| Conveying Speed | 0.5-20M/min or customer specified |
| Power supply | AC1P110V/220V |
| Power | Max 100VA |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
| OPTIONAL CONFIGURATION | |
| Motorized width adjustment | |
| 1 | PLC control |
| 2 | Touch Screen |
| 3 | Width Adjustment by motor |
| 4 | Automatic Width Adjustment |
