Product Details:
|
| Application: | Dual Rail Inspection Conveyor | Description: | 0.8M To 1M Dual Rail High-End Inspection Conveyor With Dust Cover - 650mm Max PCB Width |
|---|---|---|---|
| Brand: | INFITEK | Rail Width: | Adjustable Rail Width |
| Available Length: | 0.8M, 1M - Or Customize | Warranty: | One-Year |
| Reliability: | Durable And Long Life Span - Industrial Use | Packaging: | Wooden Crate |
| Highlight: | Dual Rail PCB Inspection Conveyor,PCB Inspection Conveyor 650mm |
||

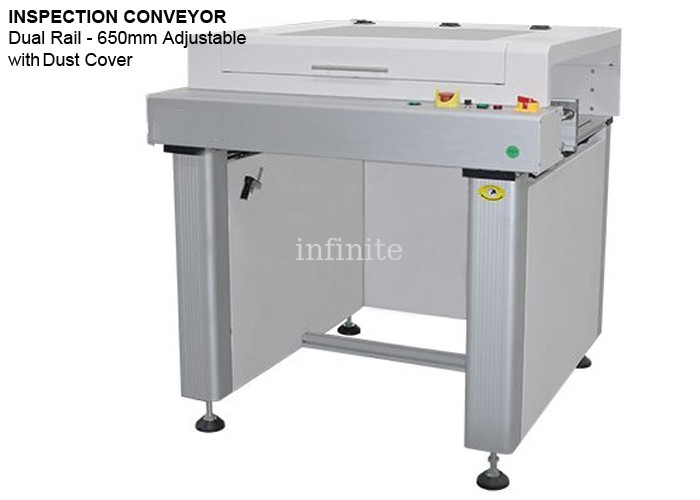

0.8M to 1M Dual Rail High-End Inspection Conveyor with Dust Cover - 650mm max PCB width
INFITEK 0.8M to 1M Dual Rail High-End Inspection Conveyor with Dust Cover is an SMT board handling equipment. It is designed to be used in the Dual Track SMT Production Line. The 0.8M to 1M Dual Rail High-End Inspection Conveyor with Dust Cover has features that help to relax the arms of operators. It is also designed to be easy to operate and maintain. This board handling equipment is used with original and branded parts, and other parts and software that are independently developed.
HIGH-END INSPECTION CONVEYOR WITH DUST COVER
Dual Track - Automatic Rail Width Adjustment
Applicable PCB Size: 650mm max width
Conveyor Length: 0.8M, 1M - or specified
FEATURES:
| TECHNICAL PARAMETERS | |
| Description | This device is equivalent to an SMD machine or operator testing station of PCB assembly |
| Belt Type | Antistatic oblate belt |
| Conveying Speed | 0.5-20M/min or customer specified |
| Power supply | AC1P110V/220V |
| Power | Max 100VA |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
| OPTIONAL CONFIGURATION | |
| Motorized width adjustment | |
| 1 | PLC control |
| 2 | Touch Screen |
| 3 | Width Adjustment by motor |
| 4 | Automatic Width Adjustment |
