Product Details:
|
| Product Name: | PCB Inspection Conveyor | Application: | Dual Rail Inspection Conveyor For SMT Production Line |
|---|---|---|---|
| Description: | 0.8M To 1M Dual Rail High-End Inspection Conveyor With Dust Cover And LED Light - 650mm Max PCB Width | Rail Width: | Adjustable Width |
| Available Length: | 0.8M, 1M Or Customized | Warranty: | 1 Year Warranty |
| Reliability: | For Industrial Use - Long Life Span | Packaging: | Wooden Box Packaging |
| Highlight: | 0.8m PCB Inspection Conveyor,1m PCB Inspection Conveyor |
||

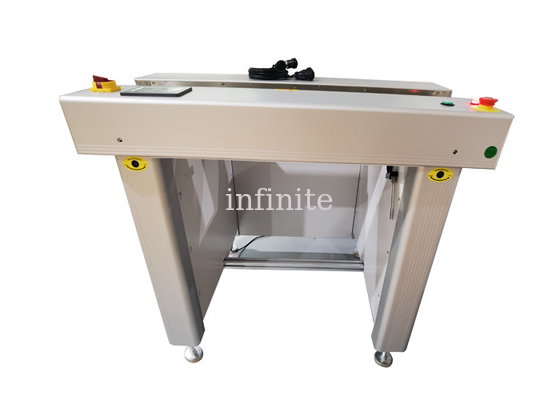

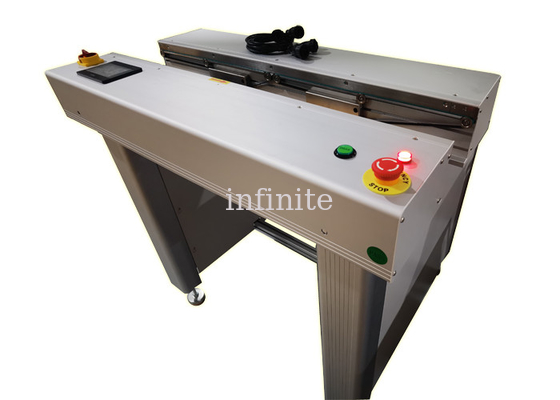

0.8m To 1m PCB Inspection Conveyor Dual Rail High End With Dust Cover
The INFITEK 0.8M to 1M Dual Rail High-End Inspection Conveyor with Dust Cover and LED Light - 650mm max PCB width is an SMT PCB conveyor with special features and a more stable frame design to be more durable and provide a longer life span. This high-end board handling equipment has an ergonomic design that will provide comfort to operators and reduce the strain on their arms while spending long hours on manual visual inspection of PCBs using this inspection conveyor. The length of this conveyor can also be customized depending on the requirements of the SMT production line.

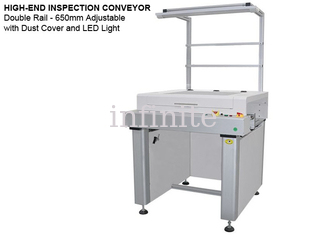

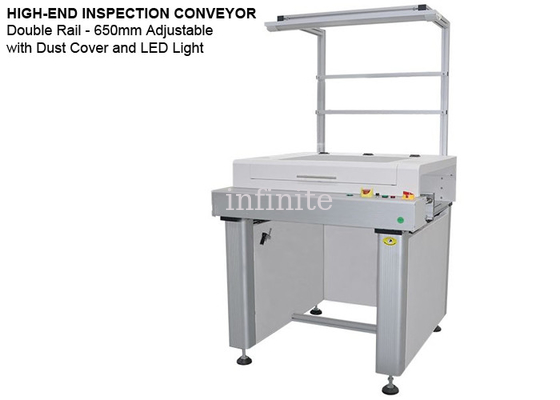

HIGH-END INSPECTION CONVEYOR WITH DUST COVER and LED Light

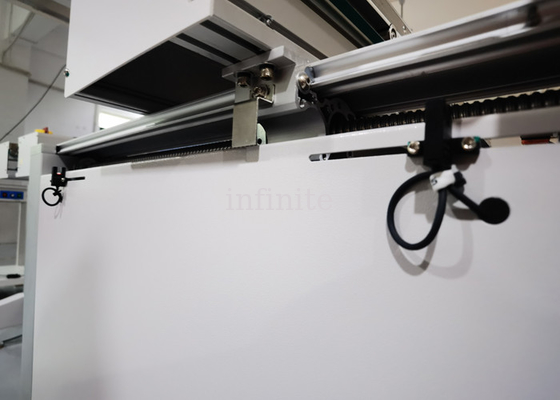

Dual Track - Automatic Rail Width Adjustment
Applicable PCB Size: 650mm max width
Conveyor Length: 0.8M, 1M - or specified
FEATURES:
| TECHNICAL PARAMETERS | |
| Description | This device is equivalent to an SMD machine or operator testing station of PCB assembly |
| Belt Type | Antistatic oblate belt |
| Conveying Speed | 0.5-20M/min or customer specified |
| Power supply | AC1P110V/220V |
| Power | Max 100VA |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
| OPTIONAL CONFIGURATION | |
| Motorized width adjustment | |
| 1 | PLC control |
| 2 | Touch Screen |
| 3 | Width Adjustment by motor |
| 4 | Automatic Width Adjustment |
