Product Details:
|
| Application: | Dual Rail Conveyor For SMT Production Line Use | Description: | Dual-Rail Conveyor With Dust Cover And LED Light - 350mm Adjustable Width |
|---|---|---|---|
| Brand: | INFITEK | Rail Width: | Adjustable Rail Width |
| Available Length: | 0.5M, 0.6M, 0.8M, 1M, 1.2M, 1.5M, 2M, 2.5M | Warranty: | 1 Year Warranty |
| Reliability: | For Industrial Use | Packaging: | Wooden Box Package |
| Highlight: | Dual-Rail SMT Conveyor,SMT Conveyor Dust Cover,SMT Cooling Conveyor |
||

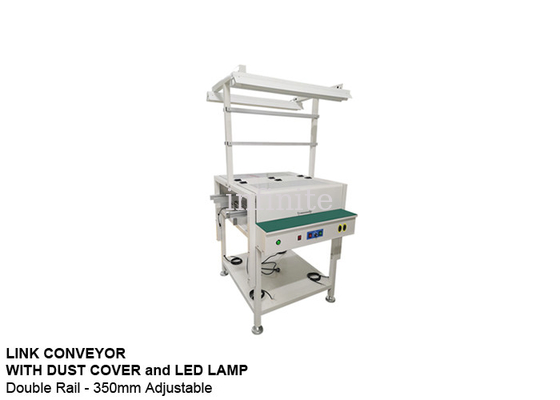

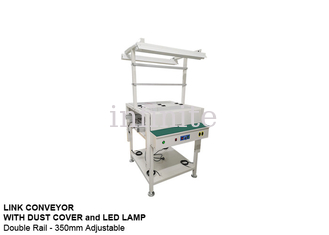

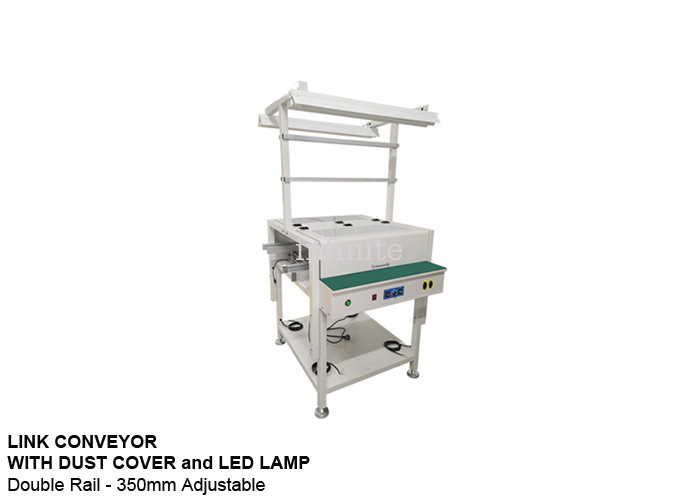

Dual-Rail Conveyor with Dust Cover and LED Light - 350mm Adjustable Width | INFITEK Board Handling Equipment
The INFITEK Dual-Rail Conveyor with Dust Cover and LED Light is a normal SMT PCB conveyor attached with additional accessories to make it more suitable for station use of this board handling equipment. The PCB conveyor model we will show here has an attached dust cover and LED Lamp. It is suitable for use as an Inspection conveyor and can also be used as a normal link conveyor. It has an adjustable rail width and can accommodate PCBs up to 350mm in Width. INFITEK board handling equipment is designed and used with original branded parts and independently developed parts and software.
Dual Rail Link Conveyor
Available Conveyor Length: 0.5M, 0.6M, 0.8M, 1M, 1.2M, 1.5M, 2M, and 2.5M, or specified
Features:
| TECHNICAL PARAMETERS | |
| Description | This device is equivalent to an SMD machine or operator testing station of PCB assembly |
| Belt Type | Chain |
| Conveying Speed | 0.5-20M/min or customer specified |
| Power supply | AC1P110V/220V |
| Power | Max 100VA |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
