Product Details:
|
| Application: | Dual Rail Conveyor For SMT Production Line Use | Description: | Dual-Rail Conveyor With Dust Cover And LED Light - 460mm Adjustable Width |
|---|---|---|---|
| Brand: | INFITEK | Rail Width: | Adjustable Rail Width |
| Available Length: | 0.5M, 0.6M, 0.8M, 1M, 1.2M, 1.5M, 2M, 2.5M | Warranty: | 1 Year Warranty |
| Reliability: | For Industrial Use | Packaging: | Wooden Box Package |
| High Light: | 460mm SMT Conveyor,SMT Conveyor LED Light,PCB Handling Equipment 0.5m |
||

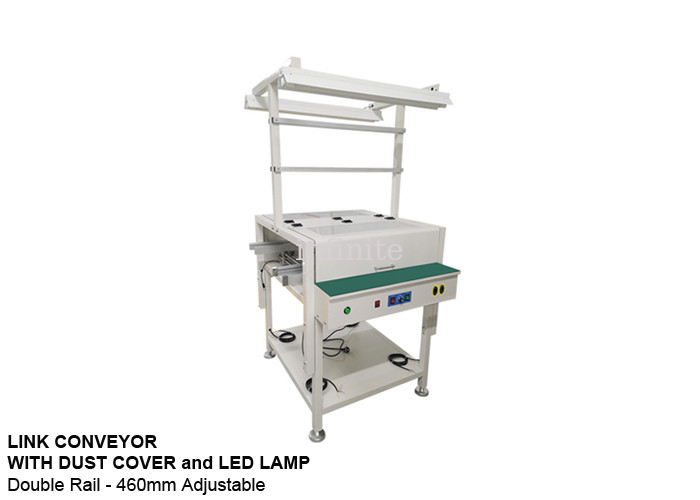

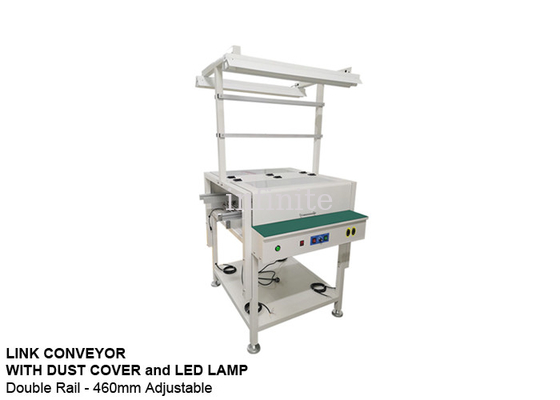

Dual-Rail Conveyor with Dust Cover and LED Light - 460mm Adjustable Width | INFITEK Board Handling Equipment
INFITEK Dual-Rail Conveyor with Dust Cover and LED Light - 460mm Adjustable Width is an SMT board handling equipment designed to be used in dual track SMT Production Line. This PCB conveyor has a modular and ergonomic design. Dual-Rail Conveyor with Dust Cover and LED Light - 460mm Adjustable Width is user-friendly and easy to maintain. It can be used as an inspection conveyor and a normal link conveyor. Dual-Rail Conveyor with Dust Cover and LED Light is available in various lengths and can also be customized according to the customer's requirements.
Dual Rail Link Conveyor
Available Conveyor Length: 0.5M, 0.6M, 0.8M, 1M, 1.2M, 1.5M, 2M, and 2.5M, or specified
Features:
| TECHNICAL PARAMETERS | |
| Description | This device is equivalent to an SMD machine or operator testing station of PCB assembly |
| Belt Type | Chain |
| Conveying Speed | 0.5-20M/min or customer specified |
| Power supply | AC1P110V/220V |
| Power | Max 100VA |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
