Product Details:
|
| Features: | This SMT Sliding Gate Conveyor Is Necessary For Channel Production Line | Application: | Sliding Type Safety Passageway Link Conveyor For SMT Production Line |
|---|---|---|---|
| Description: | Telescopic SMT Conveyor For SDM Line | Brand: | INFITEK |
| Model: | AC-350W-N | Warranty: | 1 Year |
| Reliability: | Design For Industrial Use | Packaging: | Wooden Box Package |
| High Light: | Enclosed Design SMT PCB Conveyor,SMT PCB Conveyor 900mm |
||

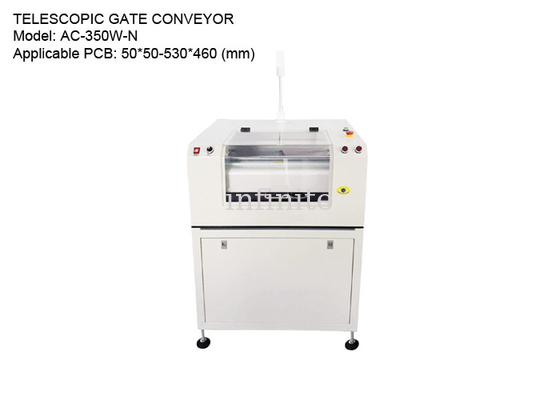

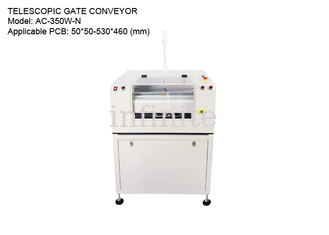

SMT Line Telescopic Gate Conveyor for 50*50-445*350mm size PCBs| INFITEK Board Handling Equipment
INFITEK Telescopic SMT Conveyor is a sliding-type gate conveyor used in the SMT Production Line. This Telescopic Gate Conveyor is a piece of necessary equipment for the channel SMT production line. INFITEK SMT Telescopic Gate Conveyor provides ease of access in passing through the back and front of the production line and offers absolute safety for operators and SMT personnel. INFITEK Telescopic SMT Conveyor has a retractable mechanism enclosed design to ensure the operation's security level. INFITEK Telescopic Conveyor is equipped with safety sensors to enhance security and safety, designed with a user-friendly LED control panel for easy operations. The top cover can be opened for easy access to hardware during maintenance.
Features:
| TECHNICAL PARAMETERS | |
| Description | This equipment is necessary for the channel production line |
| Belt type | oblate belt |
| Conveying speed | 0.5-20M/min or customer specified |
| Power supply | AC1P110V/220V |
| Power | Max 200VA |
| Transport height | 900±20mm (0r customized |
| Transport direction | From left to right or right to left |
| SPECIFICATIONS | |||
| Model | Dimension (L*W*H MM) | PCB size (MM) | Weight (KG) |
| AC-350W-N | 1500*650*1050 | 50*50-445*350 | 200 |
| AC-460W-N | 1500*760*1050 | 50*50-530*460 | 230 |
