Product Details:
|
| Features: | 50*50-445*350 PCB Sizes | Application: | For SMT Production Line Automatic PCB Cleaner |
|---|---|---|---|
| Description: | Advance PCB Cleaning Machine | Brand: | INFITEK |
| Model: | H-QXD02-XL-TN | Warranty: | 1 Year Warranty |
| Reliability: | Design For Industrial Use | Packaging: | Wooden Box Package |
| High Light: | PCB Cleaning Machine Touch screen,PCB Cleaning Machine 445*350mm,Circuit Board Cleaning Machine 110V/220V |
||

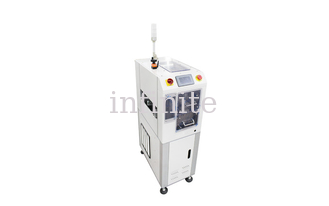

Online PCB Cleaning Machine for SMT Production Line - PCB Size 50*50-445*350mm|INFITEK Board Handling Equipment
INFITEK Advance PCB Cleaning Machine is an online SMT Production Line equipment used to remove unwanted particles and dirt from the PCB surface to eliminate static electricity. Using a multiple dust removal design: ion air rod (blowing ion air) +1 group of spiral brushes + vacuum system +1 group of dust sticking drum + vacuum dust collection, the dust removal efficiency can reach 99%. This Online PCB Cleaning Machine can eliminate dust, oil, and any dirt. INFITEK Advance PCB Cleaning Machine is user-friendly equipment, using a touch screen controller for ease of operation. The fully enclosed design ensures operational safety level and a drawer design for easy maintenance.

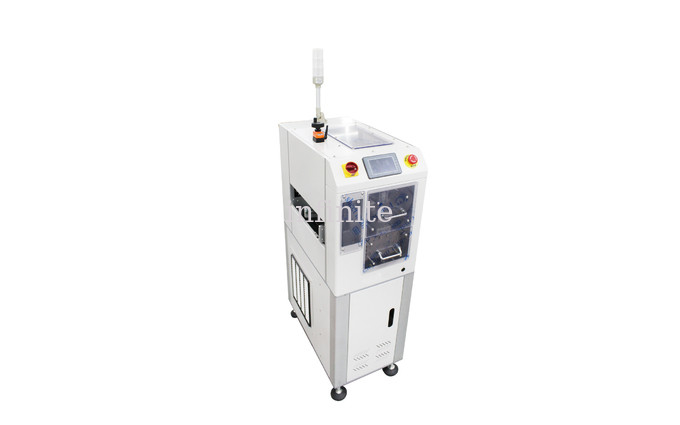

ADVANCE PCB CLEANING MACHINE
Model: H-QXD02-XL-TN
Applicable PCB sizes: 50*50-445*350
Machine Dimensions: 500*700*1195
Machine Weight: Approx. 120 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This machine is used to remove unwanted particles and dirt from the PCB surface to eliminate static electricity |
| Speed | 0-9m/min adjustable |
| Power supply | AC1P110V/220V |
| Power | Max 300V |
| PCB thickness | 0.6-5mm |
| Air pressure | 4-6bar,10ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
| SPECIFICATIONS | |||
| Model |
Dimension (L*W*H MM) |
PCB size (MM) | Weight (KG) |
| H-QXD02-XL-TN | 500*700*1195 | 50*50-445*350 | 120 |
| H-QXD02-XXL-TN | 500*810*1195 | 50*50-530*460 | 140 |
