Product Details:
|
| Features: | High Precision Slide Rail Printing | Application: | Semi-Automatic Solder Paste Printer |
|---|---|---|---|
| Machine Name: | Semi Automatic Solder Paste Printer - 300*700mm | Brand: | INFITEK |
| Model: | OB-P618B | PCB Size: | 300*700 (mm) |
| Condition: | Brand New | Functionality: | Industrial Use (SMT) |
| Packaging: | Wooden Box | Payment Terms: | 20% Deposit - 80% Before Delivery |
| Warranty: | 1 Year Warranty | Reliability: | Design For Industrial Use |
| High Light: | Solder Paste Printer 50/60HZ,300*700mm Solder Paste Printer,Solder Paste Printing Machine |
||

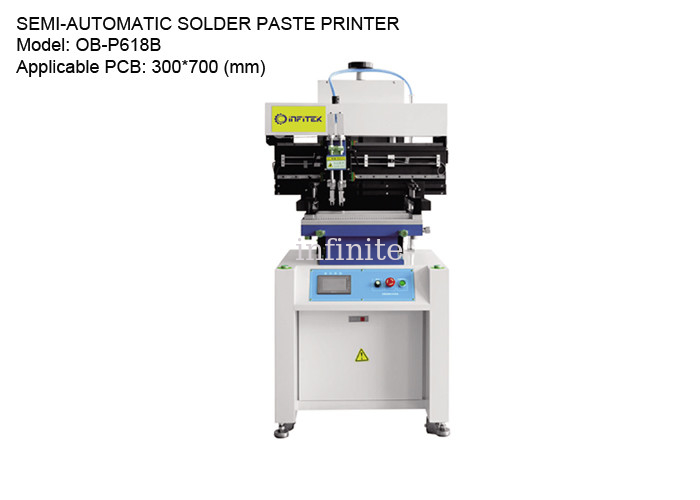

Semi-Automatic Solder Paste Printer for 300mm*700mm PCB Size | INFITEK SMT Solutions
INFITEK OB-P618B Semi-Automatic Solder Paste Printer is a precision slide solder paste printer used for printing solder paste on PCB. This Solder Paste Printing Machine is an effective solution for Semi-Automatic PCB Printing in SMT Production. INFITEK OB-P618B is the model designed for 300*700mm PCBs and uses Stencil size 650*1100mm. INFITEK Semi-Auto Solder Paste Printer can print PCBs with thicknesses from 0-100mm.
Machine Name: Semi-Automatic Solder Paste Printer
Model: OB-P618B
PCB Size: 300*700 (mm)
Stencil Size: 650*1100 (mm)
PCB Thickness: 0-100 (mm)
Features:
| TECHNICAL PARAMETERS | |
| Description | Solder paste printing for PCB board |
| Power supply | 1PAC220V50/60HZ |
| Positioning mode | Outside / Reference hole |
| Printing Speed | 0-8000mm/Min |
| SPECIFICATIONS | |
| Model | OB-P618B |
| Dimension (L*W*H) (mm) | 1050*800*1700 |
| Platform size (mm) | 320*700 |
| PCB size (mm) | 300*700 |
| Stencil size (mm) | 650*1100 |
| PCB thickness (mm) | 0-100 |
| Platform height (mm) | 880 |
| Repeatability | (+/-) 0.01mm |
| Weight (KG) | Approx.290 |
