Product Details:
|
| Features: | This SMT Sliding Gate Conveyor Is Necessary For Channel Production Line | Application: | Sliding Type Gate Link Conveyor For SMT Production Line |
|---|---|---|---|
| Description: | Telescopic SMT Conveyor | PCB Size: | 50*50-530*460 (mm) |
| Brand: | INFITEK | Model: | AC-460W-N |
| Warranty: | 1 Year | Reliability: | Industrial Use |
| Packaging: | Wooden Box | ||
| High Light: | 20m/min Telescopic Gate Conveyor,Telescopic Gate Conveyor 530*460mm |
||

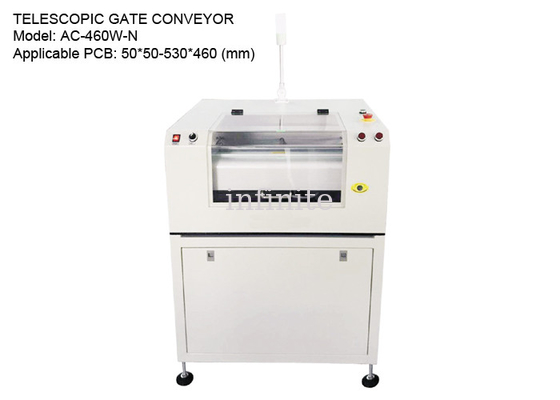

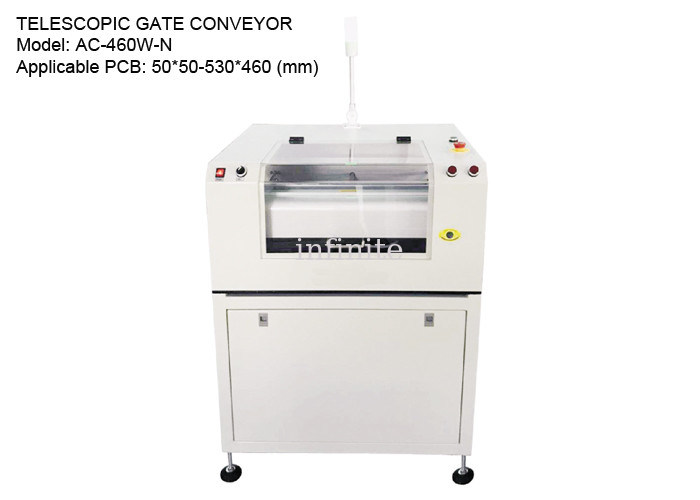

SMT Line Telescopic Gate Conveyor for 50*50-530*460mm size PCBs| INFITEK Board Handling Equipment
INFITEK AC-460W-N Telescopic Gate Conveyor is a sliding gate used in the SMT production line to facilitate going to the front and back of the production line. This is a piece of necessary equipment for the channel production line. This SMT Board Handling Equipment has a retractable mechanism enclosed design that ensures operational security level. Designed with a Top cover that can be opened for easy access to hardware during maintenance. The INFITEK AC-460W-N Telescopic Gate Conveyor is the model designed for use in 50*50-530*460mm PCB size.
Machine Name: TELESCOPIC GATE CONVEYOR
Model: AC-460W-N
PCB Size: 50*50-530*460 (mm)
Machine Dimensions: 1500*760*1050 (mm)
Machine Weight: Approx. 230 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This equipment is necessary for the channel production line |
| Belt type | oblate belt |
| Conveying speed | 0.5-20M/min or customer specified |
| Power supply | AC1P110V/220V |
| Power | Max 200VA |
| Transport height | 900±20mm (0r customized |
| Transport direction | From left to right or right to left |
| SPECIFICATIONS | |||
| Model | Dimension (L*W*H MM) | PCB size (MM) | Weight (KG) |
| AC-350W-N | 1500*650*1050 | 50*50-445*350 | 200 |
| AC-460W-N | 1500*760*1050 | 50*50-530*460 | 230 |
