Product Details:
|
| Features: | This SMT Lowering Gate Conveyor Is Necessary For Channel Production Line | Application: | Lowering Type Gate Conveyor For SMT Production Line |
|---|---|---|---|
| Description: | Lowering Gate Conveyor | PCB Size: | 50*50-530*460 (mm) |
| Brand: | INFITEK | Model: | LC-460W-N |
| Warranty: | 1 Year Warranty | Reliability: | For Industrial Use |
| Packaging: | Wooden Box | ||
| High Light: | Slide Gate Conveyor 50*50mm,Slide Gate Conveyor 530*460mm,SMT Lowering Gate Conveyor |
||

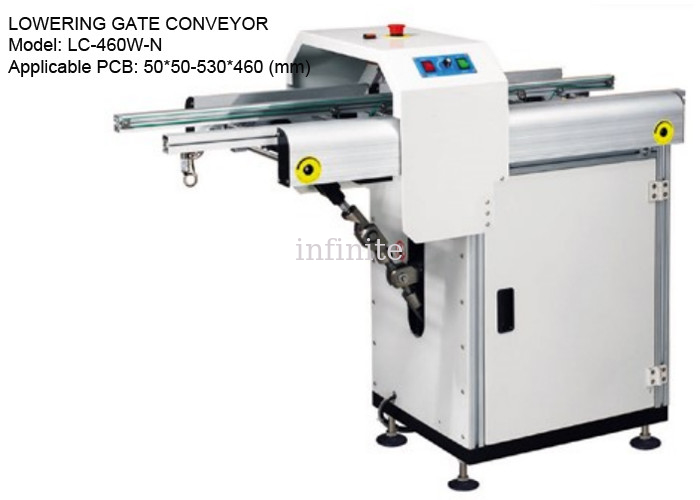

SMT Lowering Gate Conveyor for 50*50-530*460mm size PCB | INFITEK Board Handling Equipment
INFITEK LC-460W-N Lowering Gate Conveyor is a Gate Conveyor system used in the SMT Production line. This board handling equipment is necessary for the channel production line and is used to facilitate the operator going to different parts of the SMT production line. This SMT Gate Conveyor is equipped with a push button control for automatic lowering and raising of the gate conveyor and has a 650mm passageway that can also be specified according to the customer's requirements. INFITEK LC-460W-N Lowering Gate Conveyor is designed for 50*50-530*460mm PCB sizes.
Machine Name: LOWERING GATE CONVEYOR
Model: LC-460W-N
PCB Size: 50*50-530*460 (mm)
Machine Dimensions: 1300*660*1050 (mm)
Machine Weight: Approx. 180 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This equipment is necessary for the channel production line |
| Belt type | oblate belt |
| Conveying speed | 0.5-20M/min or customer specified |
| Power supply | AC1P110V/220V |
| Power | Max 100VA |
| Air pressure | 4-6bar, 48ltr/min max |
| Transport height | 900±20mm(0r customized |
| Transport direction | From left to right or right to left |
