Product Details:
|
| Application: | Regular Link Conveyor For SMT Production Line | Description: | Can Function As Link Conveyor And Inspection Conveyor |
|---|---|---|---|
| Brand: | INFITEK | Model: | Regular Link Conveyor - 350mm Adjustable |
| Rail Width: | Adjustable Rail Width From 0mm To 350mm | Available Length: | 0.5M, 0.6M, 0.8M, 1M, 1.2M, 1.5M, 2M, 2.5M |
| Warranty: | 1 Year | Reliability: | Industrial Grade |
| Packaging: | Wooden Box | ||
| High Light: | 350mm PCB Link Conveyor,2m PCB Link Conveyor |
||

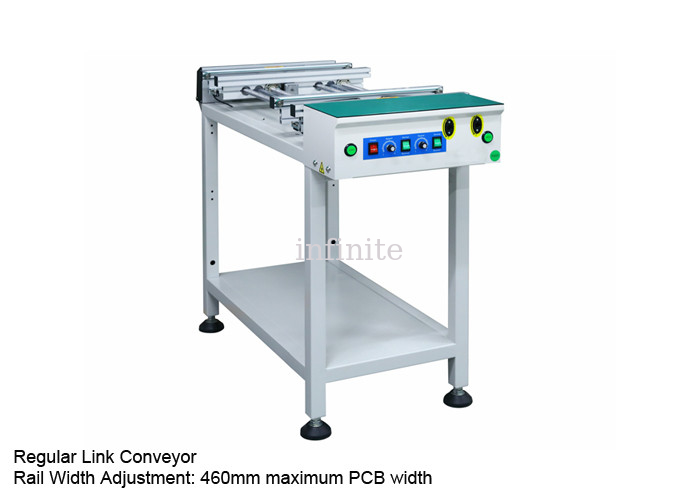

350mm Adjustable Rail Width Normal Link Conveyor | INFITEK Board Handling Equipment
The INFITEK Link Conveyor is a conveyor designed and developed by INFITEK to be used as a link in SMT machines and can also be used as an inspection conveyor. The 350 adjustable INFITEK Regular Link Conveyor is designed for use on PCBs with a maximum width size of 350mm. INFITEK Regular Link Conveyor is available in lengths 0.5M, 0.6M, 0.8M, 1M, 1.2M, 1.5M, 2M, and 2.5M, and can also design special sizes depending on customer requirements.
Regular Link Conveyor
PCB Width: 350mm Max Width
Available Conveyor Length: 0.5M, 0.6M, 0.8M, 1M, 1.2M, 1.5M, 2M, and 2.5M, or specified
Features:
| TECHNICAL PARAMETERS | |
| Description | This device is equivalent to an SMD machine or operator testing station of PCB assembly |
| Belt Type | Antistatic oblate belt |
| Conveying Speed | 0.5-20M/min or customer specified |
| Power supply | AC1P110V/220V |
| Power | Max 100VA |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
