Product Details:
|
| Application: | Regular Link Conveyor For SMT Production Line | Description: | Can Function As Link Conveyor And Inspection Conveyor |
|---|---|---|---|
| Brand: | INFITEK | Model: | Regular Link Conveyor With LED Light - 460mm Adjustable |
| Rail Width: | Adjustable Rail Width From 0mm To 460mm | Available Length: | 0.5M, 0.6M, 0.8M, 1M, 1.2M, 1.5M, 2M, 2.5M |
| Warranty: | 1 Year | Reliability: | Industrial Grade |
| Packaging: | Wooden Box | ||
| High Light: | 2m PCB Link Conveyor,Normal PCB Link Conveyor |
||
460mm Adjustable Rail Width Normal Link Conveyor with LED Light | INFITEK Board Handling Equipment
The INFITEK Regular Conveyor with LED light is a Normal Link Conveyor equipped with an LED light to be used as a manual visual inspection station. It is used in stations that require manual visual inspection in processes that require manual verification and PCB inspection. INFITEK manufactures a variety of board handling equipment used in the SMT Production Line. This INFITEK regular link conveyor with LED light has an adjustable width that can accommodate a PCB with a max width of 460mm. It is also available in various lengths and can be customized to fit the customer's needs.

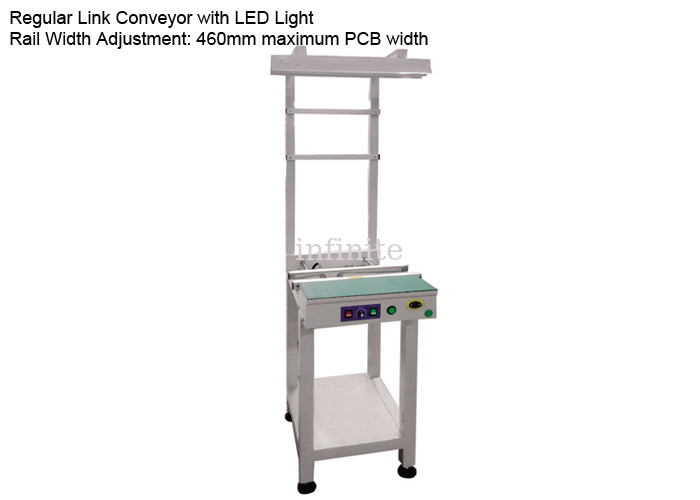

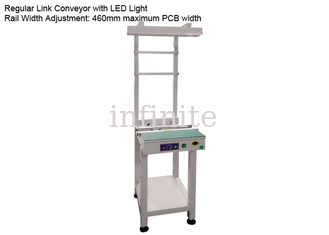

Regular Link Conveyor with LED Light
PCB Width: 460mm Max Width
Available Conveyor Length: 0.5M, 0.6M, 0.8M, 1M, 1.2M, 1.5M, 2M, and 2.5M, or specified
Features:
| TECHNICAL PARAMETERS | |
| Description | This device is equivalent to an SMD machine or operator testing station of PCB assembly |
| Belt Type | Antistatic oblate belt |
| Conveying Speed | 0.5-20M/min or customer specified |
| Power supply | AC1P110V/220V |
| Power | Max 100VA |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
