Product Details:
|
| Application: | Ergonomic Design Inspection Conveyor | Description: | 0.8M To 1M Single Rail High-End Inspection Conveyor With Dust Cover And LED Light - 460mm Max PCB Width |
|---|---|---|---|
| Brand: | INFITEK | Rail Width: | Adjustable Rail Width Up To 460mm |
| Available Length: | 0.8M, 1M - Or Specified | Warranty: | 1-year |
| Reliability: | Industrial Use | Packaging: | Wooden Crate/box |
| High Light: | PCB Conveyor System CE,460mm PCB Conveyor System |
||

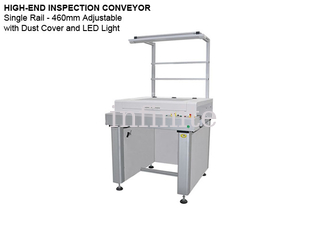

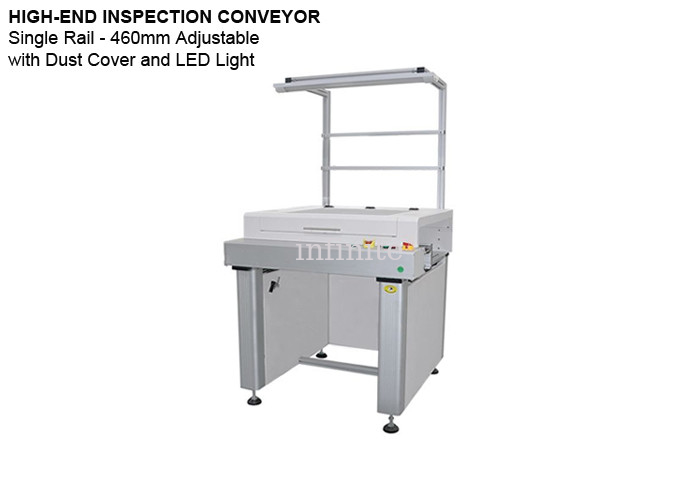

0.8M to 1M Single Rail High-End Inspection Conveyor with Dust Cover and LED Light - 460mm max PCB width
INFITEK 0.8M to 1M Single Rail High-End Inspection Conveyor with Dust Cover and LED Light is a board handling equipment used in Single Lane SMT Production Line. This Single Track PCB Conveyor has 460mm max PCB width adjustment. It has an ergonomic design that helps to reduce stress on the arms of operators who will be assigned as manual visual inspectors. This 0.8M to 1M Single Rail High-End Inspection Conveyor has additional features Dust Cover and LED Light.
HIGH-END INSPECTION CONVEYOR WITH DUST COVER
Single Track - Automatic Rail Width Adjustment
Applicable PCB Size: 460mm max width
Conveyor Length: 0.8M, 1M - or specified
FEATURES:
| TECHNICAL PARAMETERS | |
| Description | This device is equivalent to an SMD machine or operator testing station of PCB assembly |
| Belt Type | Antistatic oblate belt |
| Conveying Speed | 0.5-20M/min or customer specified |
| Power supply | AC1P110V/220V |
| Power | Max 100VA |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
| OPTIONAL CONFIGURATION | |
| Motorized width adjustment | |
| 1 | PLC control |
| 2 | Touch Screen |
| 3 | Width Adjustment by motor |
| 4 | Automatic Width Adjustment |
