Product Details:
|
| Features: | Durable And Long Service Life | Application: | PCB Diverter Conveyor In SMT Production Line |
|---|---|---|---|
| Description: | Turn Conveyor For L-size PCBs | Applicable PCB Size: | 50*50-445*400 Mm |
| Model: | CN-L-N | Brand: | INFITEK |
| Warranty: | One Year Warranty | Reliability: | Industrial Use |
| Packaging: | Wooden Box/Crate | ||
| Highlight: | 180 Degree PCB Turn Conveyor,PCB Turn Conveyor 445*400mm,90 Degree Turn Conveyor |
||

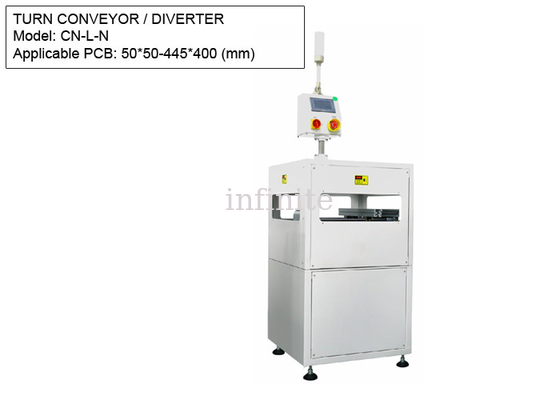

Turn Conveyor, PCB Diverter for L-Size PCB - 50*50mm up to 445*400mm| INFITEK Board Handling Equipment
The INFITEK CN-L-N Turn Conveyor is a PCB diverter used by SMT Production Lines that need to turn the flow of PCB to its next processes. This Board Handling Equipment is used to redirect the PCBs flow into different channels in a production line. This PCB Turning conveyor can rotate 90 degrees, 180 degrees, and 270 degrees. INFITEK CN-L-N is the model designed for L-size PCBs measuring 50*50-445*400mm.
Machine Name:
Model: CN-L-N
PCB Size: 50*50-445*400 (mm)
Machine Dimensions: 600*600*1200 (mm)
Est. Machine Weight: 170 kg
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used to redirect PCBs flow into different channels in a production line (rotate 90 degrees, 180 degrees, 270 degrees) |
| Cycle time | Approx.15 seconds |
| Belt type | Round belt or oblate belt |
| Power supply | AC1P110V/220V |
| Power | Max 250VA |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
