Product Details:
|
| Features: | Durability Tested And Guaranteed Long Service Life | Application: | PCB Turning Conveyor In SMT Production Line |
|---|---|---|---|
| Description: | Turn Conveyor For XL-size PCBs | Applicable PCB Size: | 50*50-530*460 Mm |
| Model: | CN-XL-N | Brand: | INFITEK By Infinite Automation |
| Warranty: | 1 Year Warranty | Reliability: | Industrial Grade |
| Packaging: | Wooden Box Package | ||
| Highlight: | 90 Degree PCB Turn Conveyor,PCB Turn Conveyor 50*50m,Turning Conveyor XL |
||

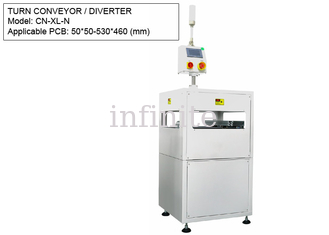

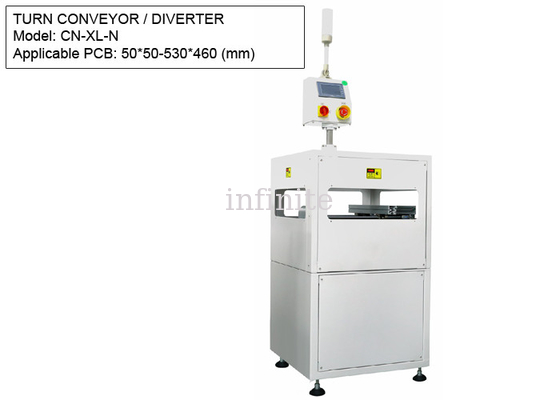

Turn Conveyor, PCB Diverter for XL-Size PCB - 50*50mm up to 530*460mm| INFITEK Board Handling Equipment
INFITEK CN-XL-N Turn Conveyor is a PCB Diverter used in SMT Production Line. This Board Handling Equipment is capable of turning the direction of rotation at 90 degrees, 180 degrees, and 270 degrees. This PCB Turning Conveyor is used to redirect PCB flow into different channels in a production line. The INFITEK CN-XL-N Turn Conveyor is the model designed for XL-size PCBs and has a User-friendly “soft-touch” LED control membrane control panel. It also has an Enclosed design with a built-in torque limiter ensuring the highest level of safety that can be removed when maintenance is required. INFITEK manufactures and offers a wide range of Board Handling Equipment and Machines related to SMT, DIP, PCBA, and Electronic Products Manufacturing.
Machine Name:
Model: CN-XL-N
PCB Size: 50*50-530*460 (mm)
Machine Dimensions: 750*750*1200 (mm)
Est. Machine Weight: 220 kg
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used to redirect PCBs flow into different channels in a production line (rotate 90 degrees, 180 degrees, 270 degrees) |
| Cycle time | Approx.15 seconds |
| Belt type | Round belt or oblate belt |
| Power supply | AC1P110V/220V |
| Power | Max 250VA |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
