Product Details:
|
| Application: | Regular Link Conveyor For SMT Production Line | Description: | Can Function As Link Conveyor And Inspection Conveyor |
|---|---|---|---|
| Brand: | INFITEK | Model: | Regular Link Conveyor With Fan Cooling Cover - 350mm Adjustable |
| Rail Width: | Adjustable Rail Width From 0mm To 350mm | Available Length: | 0.5M, 0.6M, 0.8M, 1M, 1.2M, 1.5M, 2M, 2.5M |
| Warranty: | 1 Year | Reliability: | Industrial Grade |
| Packaging: | Wooden Box | ||
| High Light: | SMT Conveyor 350mm,0.6m SMT Conveyor Fan Cooling |
||

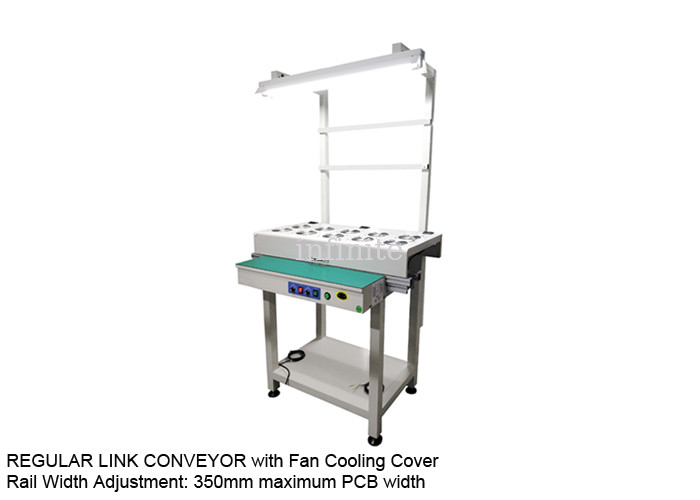

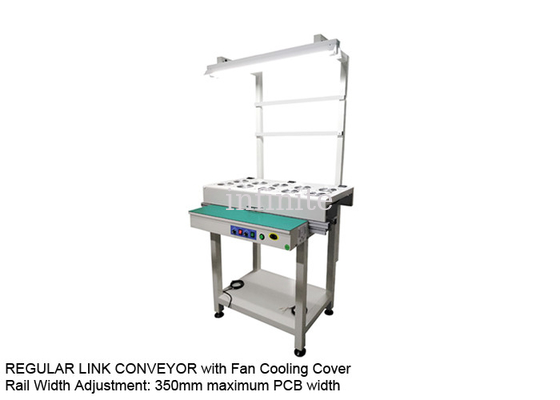

350mm Adjustable Rail Width Normal Link Conveyor with Fan Cooling Cover
INFITEK Regular Link Conveyor with Fan Cooling Cover is a type of normal type link conveyor with a cover and cooling fan. This board handling equipment is used in SMT Production Line. The Regular Link Conveyor with Fan Cooling Cover is designed to be used to cool the PCB after it passes through the Reflow Oven and prepare it for the next process it must go through. The Regular Link Conveyor with Fan Cooling Cover designed by INFITEK has different conveyor lengths, it is available in 0.5M, 0.6M, 0.8M, 1M, 1.2M, 1.5M, 2M, and 2.5M, or specified according to customer's production line requirements.
Regular Link Conveyor with Fan Cooling Cover
PCB Width: 350mm Max Width
Available Conveyor Length: 0.5M, 0.6M, 0.8M, 1M, 1.2M, 1.5M, 2M, and 2.5M, or specified
Features:
| TECHNICAL PARAMETERS | |
| Description | This device is equivalent to an SMD machine or operator testing station of PCB assembly |
| Belt Type | Antistatic oblate belt |
| Conveying Speed | 0.5-20M/min or customer specified |
| Power supply | AC1P110V/220V |
| Power | Max 100VA |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
