Product Details:
|
| Application: | Cooling Conveyor For SMT Production Line Use | Description: | Cooling Conveyor |
|---|---|---|---|
| Brand: | INFITEK | Model: | Normal Link Conveyor With Cooling Fan - 350mm Adjustable |
| Rail Width: | Adjustable Rail Width Up To 350mm | Available Length: | 0.5M, 0.6M, 0.8M, 1M, 1.2M, 1.5M, 2M, 2.5M |
| Warranty: | 1 Year | Reliability: | Industrial Grade Design |
| Packaging: | Wooden Box | ||
| High Light: | 100VA SMT Conveyor,SMT Conveyor 900mm |
||

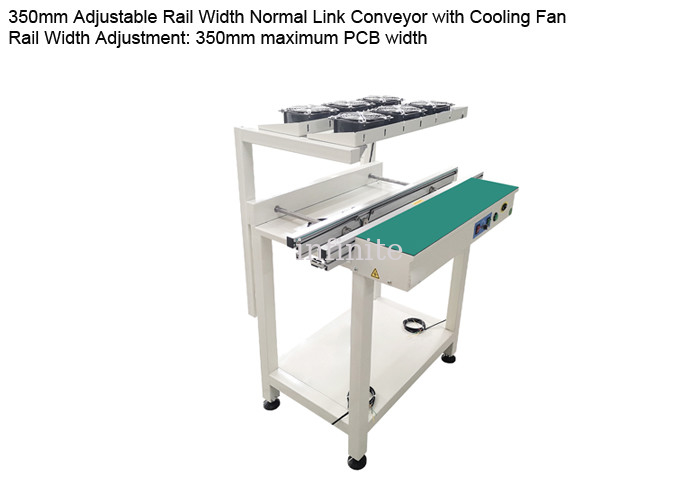

350mm Adjustable Rail Width Normal Link Conveyor with Cooling Fan | INFITEK Board Handling Equipment
The INFITEK 350mm Adjustable Rail Width Normal Link Conveyor with Cooling Fan is an adjustable SMT conveyor designed with a cooling fan to help cool the PCB before proceeding to its next process. INFITEK 350mm Adjustable Rail Width Normal Link Conveyor with Cooling Fan has a rail width adjustment that can be adjusted up to 350mm maximum width. It is also available in various conveyor lengths and can also be customized in size. INFITEK manufactures a variety of board handling equipment used in SMT, AI, DIP, and PCBA assembly lines.
Regular Link Conveyor with Cooling Fan
PCB Width: 350mm Max Width
Available Conveyor Length: 0.5M, 0.6M, 0.8M, 1M, 1.2M, 1.5M, 2M, and 2.5M, or specified
Features:
| TECHNICAL PARAMETERS | |
| Description | This device is equivalent to an SMD machine or operator testing station of PCB assembly |
| Belt Type | Antistatic oblate belt |
| Conveying Speed | 0.5-20M/min or customer specified |
| Power supply | AC1P110V/220V |
| Power | Max 100VA |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
