Product Details:
|
| Application: | Single Rail Conveyor For SMT Production Line Use | Description: | 460mm Adjustable Rail Width Normal Link Conveyor With ESD Dust Cover |
|---|---|---|---|
| Brand: | INFITEK | Rail Width: | Adjustable Rail Width Up To 460mm |
| Available Length: | 0.5M, 0.6M, 0.8M, 1M, 1.2M, 1.5M, 2M, 2.5M | Warranty: | 1 Year Warranty |
| Reliability: | For Industrial Use | Packaging: | Wooden Box Package |
| High Light: | Single Rail SMD Production Line,SMD Production Line 900mm |
||

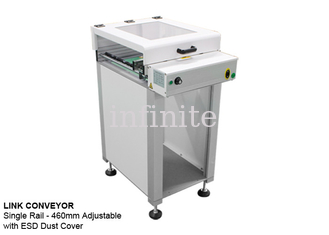

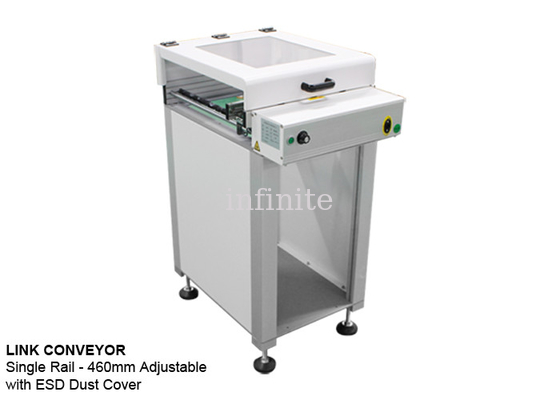

460mm Adjustable Rail Width Normal Link Conveyor with ESD Dust Cover | INFITEK Board Handling Equipment
The INFITEK 460mm Adjustable Rail Width Normal Link Conveyor with ESD Dust Cover is an SMT PCB conveyor that can be customized to suit the needs of an SMT Production Line. It can be equipped with various features to be more useful for station use. This 460mm Adjustable Rail Width Normal Link Conveyor has an ESD Dust Cover to help eliminate any dirt or small particles that land on the PCBs that may affect the quality and solderability of the components after they go through the Reflow Oven process.
Single Rail Link Conveyor
Available Conveyor Length: 0.5M, 0.6M, 0.8M, 1M, 1.2M, 1.5M, 2M, and 2.5M, or specified
Features:
| TECHNICAL PARAMETERS | |
| Description | This device is equivalent to an SMD machine or operator testing station of PCB assembly |
| Belt Type | Antistatic oblate belt |
| Conveying Speed | 0.5-20M/min or customer specified |
| Power supply | AC1P110V/220V |
| Power | Max 100VA |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
