Product Details:
|
| Application: | Single Rail Conveyor For SMT Production Line Use | Description: | 460mm Adjustable Rail Width Normal Link Conveyor With Plate With Fan |
|---|---|---|---|
| Brand: | INFITEK | Rail Width: | Adjustable Rail Width Up To 460mm |
| Available Length: | 0.5M, 0.6M, 0.8M, 1M, 1.2M, 1.5M, 2M, 2.5M | Warranty: | 1 Year Warranty |
| Reliability: | For Industrial Use | Packaging: | Wooden Box Package |
| High Light: | 1.5m PCB Assembly Line,2m PCB Assembly Line |
||

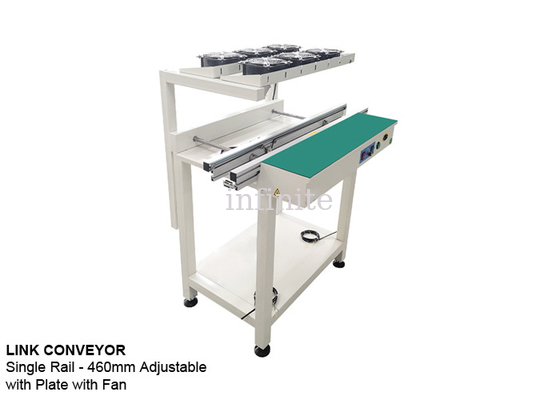

460mm Adjustable Rail Width Normal Link Conveyor with Plate with Fan | INFITEK Board Handling Equipment
INFITEK 460mm Adjustable Rail Width Normal Link Conveyor with Plate with Fan is a single-track PCB conveyor used in the SMT Production line. It is placed after the Reflow Oven to serve as a cooling conveyor for PCBs that come from the Reflow Oven process before proceeding to its next process. This INFITEK board handling equipment has a fan on top attached to a plate that serves as its holder. 460mm Adjustable Rail Width Normal Link Conveyor with Plate with Fan has adjustable rail width and can pass PCB with max width up to 460mm.
Single Rail Link Conveyor
Available Conveyor Length: 0.5M, 0.6M, 0.8M, 1M, 1.2M, 1.5M, 2M, and 2.5M, or specified
Features:
| TECHNICAL PARAMETERS | |
| Description | This device is equivalent to an SMD machine or operator testing station of PCB assembly |
| Belt Type | Antistatic oblate belt |
| Conveying Speed | 0.5-20M/min or customer specified |
| Power supply | AC1P110V/220V |
| Power | Max 100VA |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
