Product Details:
|
| Application: | Dual Rail Conveyor For SMT Production Line Use | Description: | Dual-Rail Conveyor With Dust Cover - 350mm Adjustable Width |
|---|---|---|---|
| Brand: | INFITEK | Rail Width: | Adjustable Rail Width |
| Available Length: | 0.5M, 0.6M, 0.8M, 1M, 1.2M, 1.5M, 2M, 2.5M | Warranty: | 1 Year Warranty |
| Reliability: | For Industrial Use | Packaging: | Wooden Box Package |
| High Light: | 0.6m PCB Link Conveyor,0.8m PCB Link Conveyor |
||

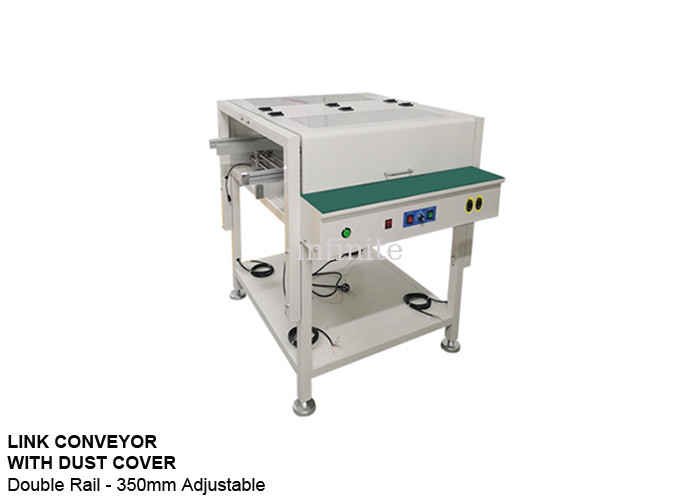

Dual-Rail Conveyor with Dust Cover - 350mm Adjustable Width | INFITEK Board Handling Equipment
The INFITEK Dual-Rail Conveyor with Dust Cover is an SMT Link Conveyor with a cover to protect dirt or dust that may land on the PCB while it travels to various processes in the SMT Production Line. One of the options of this board handling equipment is the 350mm Adjustable Width. It can accommodate PCBs with a max width of 350mm. INFITEK Dual-Rail Conveyor with Dust Cover can be set in two operation modes - Inspection mode and Automatic mode (bypass mode) function settings.
Dual Rail Link Conveyor
Available Conveyor Length: 0.5M, 0.6M, 0.8M, 1M, 1.2M, 1.5M, 2M, and 2.5M, or specified
Features:
| TECHNICAL PARAMETERS | |
| Description | This device is equivalent to an SMD machine or operator testing station of PCB assembly |
| Belt Type | Chain |
| Conveying Speed | 0.5-20M/min or customer specified |
| Power supply | AC1P110V/220V |
| Power | Max 100VA |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
