Product Details:
|
| Application: | Dual Rail Conveyor For SMT Production Line Use | Description: | Dual-Rail Conveyor With ESD Dust Cover - 460mm Adjustable Width |
|---|---|---|---|
| Brand: | INFITEK | Rail Width: | Adjustable Rail Width |
| Available Length: | 0.5M, 0.6M, 0.8M, 1M, 1.2M, 1.5M, 2M, 2.5M | Warranty: | 1 Year Warranty |
| Reliability: | For Industrial Use | Packaging: | Wooden Box Package |
| High Light: | Dual Rail SMT Handling Equipment,SMT Handling Equipment 110V/220V |
||

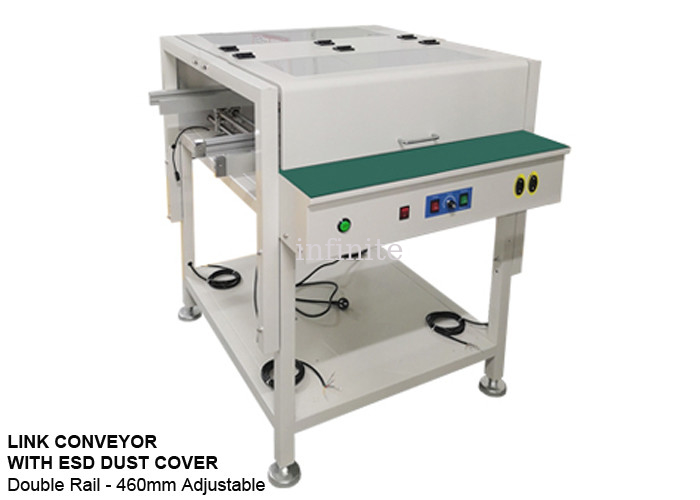

Dual-Rail Conveyor with ESD Dust Cover - 460mm Adjustable Width | INFITEK Board Handling Equipment
The INFITEK Dual-Rail Conveyor with ESD Dust Cover IS A SMT Regular PCB Conveyor with added features to suit station use. This model has a dual rail conveyor and can be used in the Dual Track SMT Production Line. INFITEK PCB conveyors have an ergonomic design so they can be used as a visual inspection station. The design of the INFITEK conveyor helps to reduce the arms fatigue of the operators who will be assigned to it if it is used as an inspection station. INFITEK board handling equipment has a modular design and is assured of high quality and uses original and branded and independently developed parts and software.
Dual Rail Link Conveyor
Available Conveyor Length: 0.5M, 0.6M, 0.8M, 1M, 1.2M, 1.5M, 2M, and 2.5M, or specified
Features:
| TECHNICAL PARAMETERS | |
| Description | This device is equivalent to an SMD machine or operator testing station of PCB assembly |
| Belt Type | Chain |
| Conveying Speed | 0.5-20M/min or customer specified |
| Power supply | AC1P110V/220V |
| Power | Max 100VA |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
