Product Details:
|
| Features: | Special Chain Transmission Ensures Product Transmission Efficiency | Application: | PCB Conveyor Used For Wave Soldering Machine |
|---|---|---|---|
| Description: | Wave Soldering Unloading Conveyor | Brand: | INFITEK |
| Model: | UB-350-N | PCB Size: | 50*50-445*350 (mm) |
| Warranty: | 1 Year Warranty | Reliability: | Industrial Use |
| Packaging: | Wooden Box | ||
| High Light: | SMEMA Wave Solder Unloading Conveyor,Wave Solder Unloading Conveyor 445*350mm |
||
Wave Soldering Unloading Conveyor for 50*50-445*350mm PCB Size | INFITEK Board Handling Equipment
The INFITEK UB-350-N Wave Soldering Machine Unloading Conveyor is a board handling equipment that is used to pass the PCB that will unload from the Wave Soldering Machine process. This Wave Soldering PCB Unloader equipment has a special chain transmission that ensures product transmission efficiency. The overall structure adopts an aluminum profile structure, which has a beautiful appearance and a small footprint and adopts with SMEMA interface.

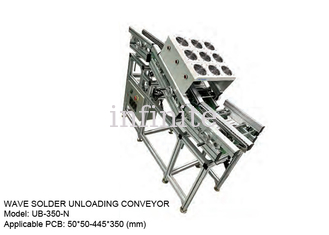

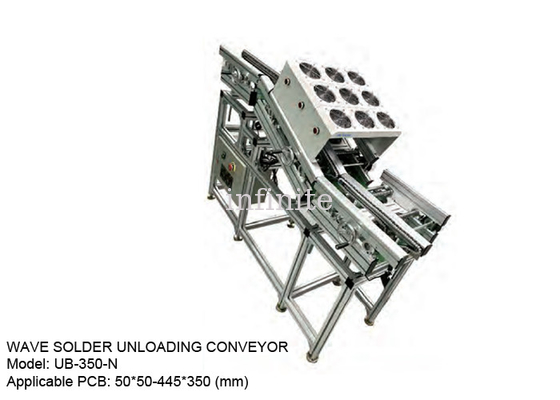

WAVE SOLDER UNLOADING CONVEYOR
Model: UB-350-N
PCB Size: 50*50-445*350 (mm)
Machine Dimensions: 2200*485*1400 (mm)
Machine Weight: 80 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | For the transfer to the next station after the PBC Wave Soldering process |
| Speed | 0-5m/min adjustable |
| Power supply | AC2P110V/220V |
| Power | Max 100V |
| PCB thickness | 0.6-5mm |
| Air pressure | |
| Transport height | input 1100-1350mm (adjustable), |
| output 700-950 mm (adjustable) | |
| Transport direction | From left to right or right to left |
