Product Details:
|
| Features: | Using Special Chain Transmission And Designed With Easy Width Adjustment Ball Screw. | Application: | PCB Unloading Conveyor Used For Wave Soldering Machine |
|---|---|---|---|
| Description: | Wave Soldering PCB Unloading Conveyor | Brand: | INFITEK By Infinite Automation |
| Model: | UB-450-N | PCB Size: | 50*50-450*450 (mm) |
| Warranty: | 1 Year | Reliability: | Industrial Grade |
| Packaging: | Wooden Box / Crate | ||
| Highlight: | 110V/220V Wave Unload Conveyor,Wave Unload Conveyor 450*450mm |
||

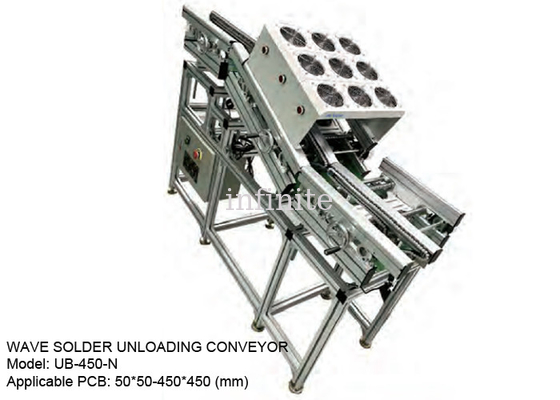

Wave Soldering Unloading Conveyor for 50*50-450*450mm PCB Size | INFITEK Board Handling Equipment
The INFITEK UB-450-N Wave Soldering Unloading Conveyor is the PCB unloading conveyor used to transfer PCBs after the Wave Soldering Process to its next process. This Board Handling Equipment is designed for PCB sizes from 50*50mm to 450*450mm size. The overall structure adopts an aluminum profile structure, which has a beautiful appearance and a small footprint. This Wave Soldering PCB Unloader is also designed with a special chain transmission to be smooth and ensures product transmission efficiency.
WAVE SOLDER UNLOADING CONVEYOR
Model: UB-450-N
PCB Size: 50*50-450*450 (mm)
Machine Dimensions: 2200*600*1400 (mm)
Machine Weight: 85 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This equipment is used for transferring PCBs to the next station after the PCB Wave Soldering process |
| Speed | 0-5m/min adjustable |
| Power supply | AC2P110V/220V |
| Power | Max 100V |
| PCB thickness | 0.6-5mm |
| Air pressure | |
| Transport height | input 1100-1350mm (adjustable), |
| output 700-950 mm (adjustable) | |
| Transport direction | left to right or right to left |
