Product Details:
|
| Application: | PCB UP And DOWN Conveyor For Wave Soldering Machine | Description: | Wave Soldering Machine Up And Down Conveyor - 50*50-445*350mm PCB |
|---|---|---|---|
| Brand: | INFITEK | Model: | BF-L-BN350 |
| PCB Size: | 50*50-445*350 (mm) | Warranty: | 1 Year |
| Reliability: | Industrial Grade | Packaging: | Wooden Box / Crate |
| Highlight: | 20M/min Up Down Conveyor,Up Down Conveyor 445*350mm,Wave Solder Outfeed Conveyor |
||
Wave Soldering Machine Up and Down Conveyor for 50*50-445*350mm PCB Size | INFITEK Board Handling Equipment
The INFITEK BF-L-BN350 Wave Soldering Machine Up and Down Conveyor is a Board Handling Equipment used to transfer PCBs into the inlet of the Wave Soldering Machine. This PCB Conveyor has a design that is easy to use and adjust. Its conveying speed can also be adjusted as well as the height. The Wave Soldering Machine Up and Down Conveyor has two designs to choose from, the welded frame and the aluminum profile frame.

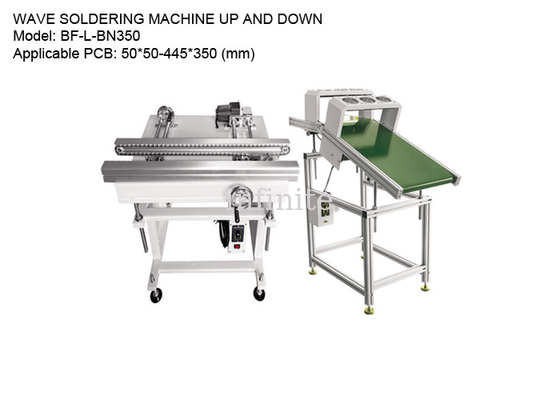

WAVE SOLDERING MACHINE UP AND DOWN
Model: BF-L-BN350
PCB Size: 50*50-445*350 (mm)
Machine Dimensions: 800*600*750 (mm)
Machine Weight: 35 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for the transmission of the PCBs of Wave soldering inlet |
| Belt type | 35B Nylon chain or specify |
| Conveying speed | 0.5-20M/min or customer specified |
| Power supply | AC1P110V/220V |
| Power | Max 100VA |
| Transport direction | From left to right or right to left |
