Product Details:
|
| Application: | PCB UP And DOWN Conveyor For Wave Soldering Machine Use | Description: | Wave Soldering Machine Up And Down Conveyor - 50*50-530*460mm PCB |
|---|---|---|---|
| Brand: | INFITEK | Model: | BF-L-BN350 |
| PCB Size: | 50*50-530*460 (mm) | Warranty: | 1 Year Warranty |
| Reliability: | Industrial Use | Packaging: | Wooden Box |
| High Light: | rectangular SMT Conveyor Belt,Smt Conveyor Belt 530*460mm,aluminum Up Down Conveyor |
||

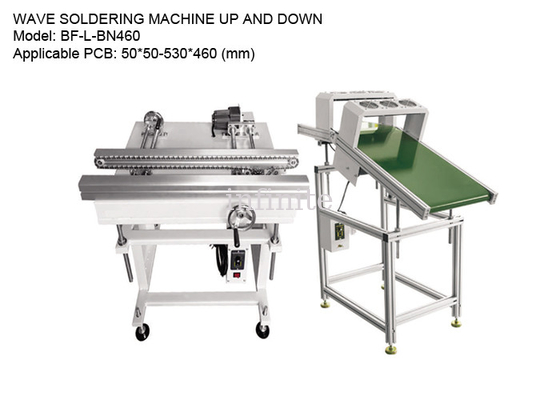

Wave Soldering Machine Up and Down Conveyor for 50*50-530*460mm PCB Size | INFITEK Board Handling Equipment
The INFITEK BF-L-BN460 Wave Soldering Machine Up and Down Conveyor is a PCB transfer equipment used to transmit PCBs into the inlet of the Wave Soldering Machine. This Board Handling Equipment has conveying speed and height adjustments to suit the requirement and speed of PCB transfer according to the production process. The Wave Soldering Machine Up and Down Conveyor has two types that can be chosen, this is the rectangular welded frame or aluminum profile frame. We can also make other sizes depending on the customer's needs.
WAVE SOLDERING MACHINE UP AND DOWN
Model: BF-L-BN460
PCB Size: 50*50-530*460 (mm)
Machine Dimensions: 800*700*750 (mm)
Machine Weight: 45 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for the transmission of the PCBs of Wave soldering inlet |
| Belt type | 35B Nylon chain or specify |
| Conveying speed | 0.5-20M/min or customer specified |
| Power supply | AC1P110V/220V |
| Power | Max 100VA |
| Transport direction | From left to right or right to left |
