Product Details:
|
| Application: | PCB UP And DOWN Conveyor For Use In Wave Soldering Machine | Description: | Wave Soldering Machine Up And Down Conveyor - 50*50-445*350mm PCB Size |
|---|---|---|---|
| Brand: | INFITEK | Model: | UB-400W |
| PCB Size: | 50*50-445*350 (mm) | Warranty: | One Year |
| Reliability: | Designed For Industrial Use | Packaging: | Wooden Box/Crate |
| High Light: | 110V/220V Assembly Line Conveyor,Assembly Line Conveyor 50*50mm,welded frame Up Down Conveyor |
||
Wave Soldering Machine Up and Down Conveyor for 50*50-445*350mm PCB Size | INFITEK Board Handling Equipment
The INFITEK UV-400W Wave Soldering Machine Up and Down Conveyor designed for PCBs with sizes from 50*50mm to 445*350mm is a Board Handling Equipment used for transmitting the PCB into the inlet of the Wave Soldering Machine. This PCB conveyor has two designs to choose from, there is a welded frame and an aluminum profile frame. The INFITEK UV-400W Wave Soldering Machine Up and Down Conveyor is a must-have board handling equipment in the Wave Soldering Process and Assembly Line. This Assembly Line Conveyor System can also adjust the conveying speed and height. INFITEK has a variety of models and designs of Board Handling Equipment equipped with SMT, DIP, and PCBA production lines.

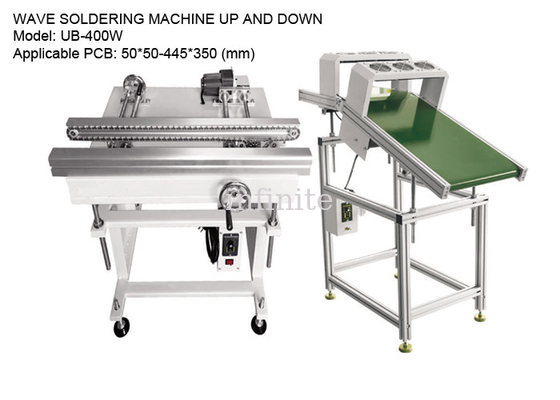

WAVE SOLDERING MACHINE UP AND DOWN
Model: UB-400W
PCB Size: 50*50-445*350 (mm)
Machine Dimensions: 1200*520*1400 (mm)
Machine Weight: 35 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for the transmission of the PCBs of Wave soldering inlet |
| Belt type | 35B Nylon chain or specify |
| Conveying speed | 0.5-20M/min or customer specified |
| Power supply | AC1P110V/220V |
| Power | Max 100VA |
| Transport direction | From left to right or right to left |
