Product Details:
|
| Application: | PCB UP And DOWN Conveyor For Wave Soldering Machine | Description: | Wave Soldering Machine Up And Down Conveyor - 50*50-530*460mm PCB Size |
|---|---|---|---|
| Brand: | INFITEK | Model: | UB-500W |
| PCB Size: | 50*50-530*460 (mm) | Warranty: | One Year Warranty Period |
| Reliability: | Industrial Use | Packaging: | Wooden Box Package |
| High Light: | 530*460mm Assembly Line Conveyor,Assembly Line Conveyor 0.5M/min,Nylon Chain Wave Soldering Machine |
||
Wave Soldering Machine Up and Down Conveyor for 50*50-530*460mm PCB Size | INFITEK Board Handling Equipment
The INFITEK PCB Up and Down Conveyor UB-500W model is the model designed to be used as a PCB conveyor entering the inlet of the Wave Soldering Machine. This Board Handling Equipment has Convey speed adjustment to suit the correct production speed. It also has a smooth lead screw for easy width adjustment. The INFITEK PCB Up and Down Conveyor can be customized and different sizes are available upon request.

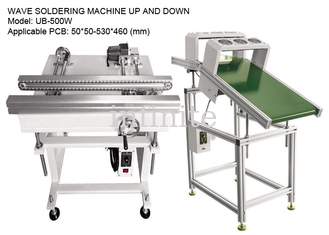

WAVE SOLDERING MACHINE UP AND DOWN
Model: UB-500W
PCB Size: 50*50-530*460 (mm)
Machine Dimensions: 1200*620*1400 (mm)
Machine Weight: 45 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for the transmission of the PCBs of Wave soldering inlet |
| Belt type | 35B Nylon chain or specify |
| Conveying speed | 0.5-20M/min or customer specified |
| Power supply | AC1P110V/220V |
| Power | Max 100VA |
| Transport direction | From left to right or right to left |
