Product Details:
|
| Features: | Capable Of Splicing 8mm Paper Reel And Plastic/ Emboss Reel | Application: | Automatic Splicing Machine Use For SMD Tape Components |
|---|---|---|---|
| Description: | Automatic Splicing Machine | Model: | MTJL08-EC |
| SMD Tape Sizes: | 8mm Paper And Emboss | Brand: | INFITEK |
| Warranty: | 1 Year Warranty | Reliability: | Industrial Use |
| Packaging: | Wooden Box | ||
| High Light: | Auto Splicer Machine Emboss Reel,Auto Splicer Machine 32mm,SMD Tape Splicing Machine |
||
Automatic Splicing Machine for SMD reel tape components - 8mm Splice Tapes | INFITEK SMT Solutions
The INFITEK MTJL08-EC Automatic Splicing Machine is a special machine developed by INFITEK to speed up tape reel splicing used in SMT mounting machines. Model MTJL08-EC is designed for 8mm reel tape and can be used for splicing paper and embossed (plastic) reels. This model is also designed with Automatic cutting and Automatic splicing features. INFITEK is a China manufacturer that makes equipment/machines used in SMT, AI, DIP, and PCBA processes.

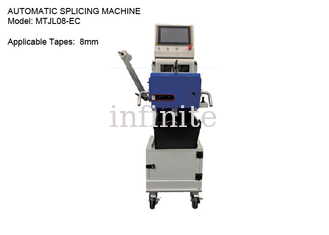

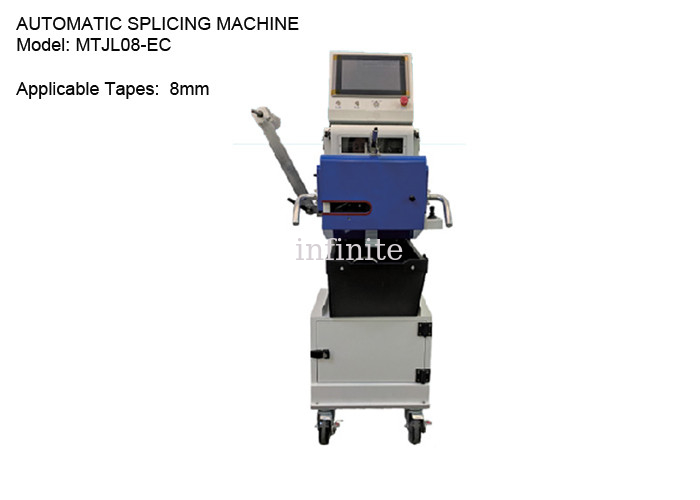

AUTOMATIC SPLICING MACHINE
Brand: INFITEK
Model: MTJL08-EC
Applicable Tape Size: 8mm Paper and Emboss
Specifications:
| Model | MTJL08-EC |
| Equipment size | 400X470X1400 |
| Working height | 950MM |
| Equipment weight | 65KG |
| Applicable placement machine | Applicable to all types of SMT Machine |
| Applicable material tape | 8mm Paper Reel and Plastic/Emboss Reel |
| Splicing method | Automatic cutting and Automatic splicing |
| Splice length | 32MM |
| Splicing Accuracy | + 0.2mm |
| Empty pocket detection method | CCD |
| Number of CCDs | 2 |
| Splicing cycle | 5sec, (no manual operation and empty material power measurement time gate) |
| Incoming Splice | Tape Roll |
| Number of Splice Tape Roll | 1200 pcs./roll |
| Incoming Splice Clip | none |
| Pass Ratio | over 95% |
| Connect with MES System | can support |
| Computer | Industrial Tablet Computer |
| Power supply | 48V lithium battery |
| Battery power supply time | 12-15H |
| Cutting method | Automatic cutting |
| Equipment Warranty | 1 year |
