Product Details:
|
| Features: | Capable Of Splicing 8mm, 12mm, 16mm Reel Tapes | Application: | Automatic Splicing Machine Use For SMD Tape Components |
|---|---|---|---|
| Description: | Automatic Splicing Machine | Model: | MTJL08G |
| SMD Tape Sizes: | 8mm, 12mm, 16mm | Brand: | INFITEK |
| Warranty: | 1 Year | Reliability: | For Industrial Use |
| Packaging: | Wooden Box / Crate | ||
| Highlight: | 8mm Auto Splicer Machine,Auto Splicer Machine Reel Tape,Automatic Splicing Machine |
||
Automatic Splicing Machine for SMD reel tape components - 8mm, 12mm, 16mm Splice Tapes | INFITEK SMT Solutions
INFITEK MTJL08G Automatic Splicing Machine is a machine dedicated to splicing SMD reel component tapes. This model can splice 8mm, 12mm, and 16mm tapes. The INFITEK Automatic Splicing Machine is designed to help speed up the material preparation process in SMT Production. The use of Splice Tape Automatic Splicing Machines is also very helpful to prevent the occurrence of wrong components. The splice tapes attached to the INFITEK MTJL08G Automatic Splicing Machine can be used with all SMT mounter brands and models.

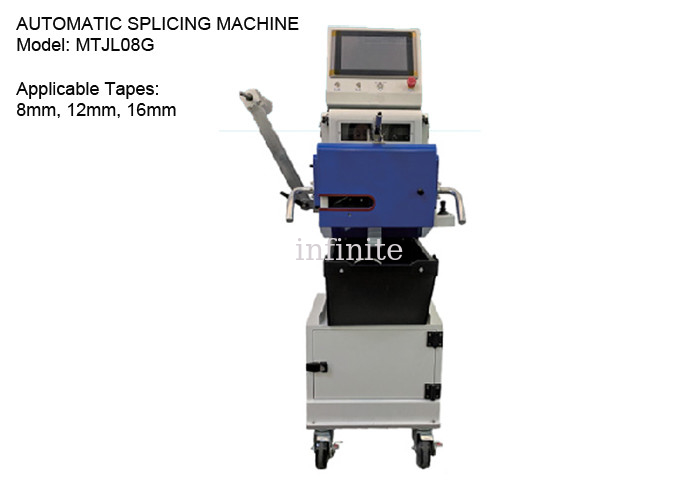

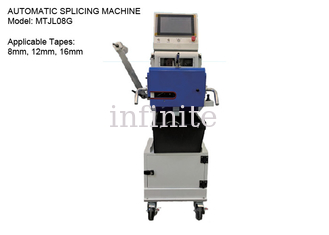

AUTOMATIC SPLICING MACHINE
Brand: INFITEK
Model: MTJL08G
Applicable Tape Size: 8mm, 12mm, 16mm
Features and Specifications:
| Model | MTJL08G |
| Equipment size | 440 X 470 X 1400mm |
| Working height | 950mm |
| Equipment weight | 75KG |
| Electric booster wheel | Power wheel drive (standard) |
| Applicable placement machine | Applicable to any type of placement machine |
| Applicable material | 8MM,12MM,16MM |
| Receiving method | Automatic cutting. Automatic material splicing |
| Length of splicing piece | Rear film 32MM,front film 32MM |
| Splice accuracy | Coil 0.2mm CCD2 |
| Empty material detection method | 6-10SEC (Excluding manual operation and empty material detection time) |
| Number of CCD Picking cycle | Coil |
| Incoming material film | 2 |
| Number of film Incoming keychain | none |
| Pass rate | above 95 |
| Docking system | support |
| Computer | Industrial Tablet PC |
| Display | none |
| Power supply | 48V carp battery X2/lithium iron phosphate |
| Battery operation time | 10-12H |
| Cutting method | Auto cut |
| Equipment warranty | Equipment warranty for 1 year |
| Other optional configuration | External mains power, Double receiving arms, Printer |
