Product Details:
|
| Features: | Capable Of Splicing 8mm, 12mm, 16mm, 24mm Reel Tapes | Application: | Automatic Splicing Machine Use For SMD Tape Components |
|---|---|---|---|
| Description: | Automatic Splicing Machine | Model: | MTJL08G-PLUS |
| SMD Tape Sizes: | 8mm, 12mm, 16mm, 24mm | Brand: | INFITEK |
| Warranty: | 1 Year Warranty | Reliability: | Design For Industrial Use |
| Packaging: | Wooden Box | ||
| Highlight: | 12mm Auto Splicer Machine,16mm Auto Splicer Machine,SMT Automatic Splicing Machine |
||
Automatic Splicing Machine for SMD reel tape components - 8mm, 12mm, 16mm, 24mm Splice Tapes | INFITEK SMT Solutions
The INFITEK MTJL08G-Plus is an Automatic Splicing Machine specially designed to speed up the splicing process of SMD reel component tapes used in SMT mounter machines. This is an effective solution to speed up material preparation, reduce the required manpower, and meet high accuracy against the wrong component being prepared for use in the SMT Production Line. The INFITEK MTJL08G-Plus Automatic Splice Tape Splicing Machine is capable of splicing reel tapes measuring 8mm, 12mm, 16mm, and 24mm. Spliced tapes can also be used on all SMT mounter machine brands and models.

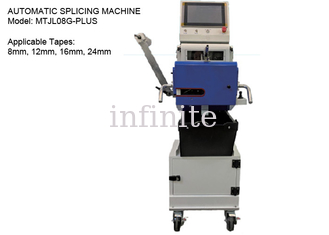

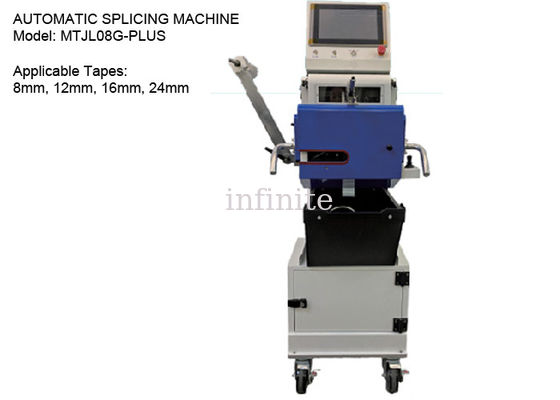

AUTOMATIC SPLICING MACHINE
Brand: INFITEK
Model: MTJL08G-Plus
Applicable Tape Size: 8mm, 12mm, 16mm, and 24mm
Features and Specifications:
| Model | MTJL08G |
| Equipment size | 440 X 470 X 1400mm |
| Working height | 950mm |
| Equipment weight | 75KG |
| Electric booster wheel | Power wheel drive (standard) |
| Applicable placement machine | Applicable to any type of placement machine |
| Applicable material | 8mm,12mm,16mm, 24mm |
| Receiving method | Automatic cutting and Automatic material splicing |
| Length of splicing piece | Rear film 32MM, front film 32MM |
| Splice accuracy | Coil 0.2mm CCD2 |
| Empty material detection method |
6-10SEC (Excluding manual operation and empty material detection time) |
| Number of CCD Picking cycle | Coil |
| Incoming material film | 2 |
| Number of film Incoming keychain | none |
| Pass rate | above 95 |
| Docking system | support |
| Computer | Industrial Tablet PC |
| Display | none |
| Power supply | 48V carp battery X2 / lithium iron phosphate |
| Battery operation time | 10-12H |
| Cutting method | Auto cut |
| Equipment warranty | 1 year |
| Other optional configuration | External mains power, Double receiving arms, Printer |
