Product Details:
|
| Application: | SMT Production Line Lay-out | Description: | Two-to-One Line With Dual-rail Pick And Place Machine Layout |
|---|---|---|---|
| Warranty: | 1 Year | ||
| High Light: | Dual-Track SMT Production Line,SMT Production Line Complete |
||
DUAL-TRACK HIGH-SPEED WIRING SCHEME A | INFITEK SMT Production Line Solutions

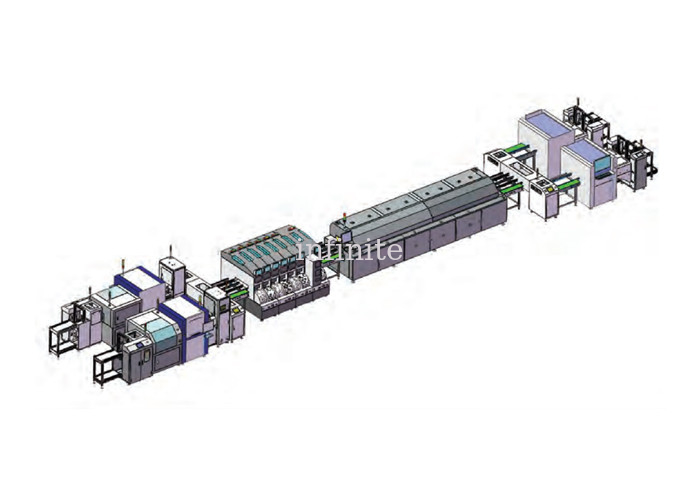

The DUAL-TRACK HIGH-SPEED WIRING SCHEME SMT Production Line Layout is based on Dual-rail Chip Mounter Machine and Dual-Rail Reflow Oven and uses Dual-rail conveyors and is also accompanied by combinations of the SMT machines and INFITEK Board Handling Equipment.
The advantage of this layout is that it doubles production capacity by adding another SMT assembly line. In addition, it saves space due to the use of PCB Shuttle Conveyor, dual-rail pick and place machine, and dual-rail reflow oven.
Recommended INFITEK Board Handling Equipment for Two-to-One Line With Dual-rail Pick and Place Machine Layout
| INFITEK Recommended Board Handling Equipment | ||
| Equipment Description | Model | Qty. |
| Automatic Sucking and Feeding Plate Machine | VL-M-TN | 2 |
| NG Buffer lm single Track NG Buffer | BN-L-TN | 2 |
| PCB Shuttle Conveyor | PT-300L-2ATN | 2 |
| Doubletrack Docking Station | DC-100M-N | 2 |
| lM Docking Station | BC-100L-N | 2 |
