Product Details:
|
| Application: | SMT Production Line Lay-out | Description: | Two-to-One Line With Dual-rail Pick And Place Machine Layout |
|---|---|---|---|
| Warranty: | 1 Year | ||
| Highlight: | Dual-Track SMT Production Line,Infitek SMT Production Line,Pick and Place Machine |
||

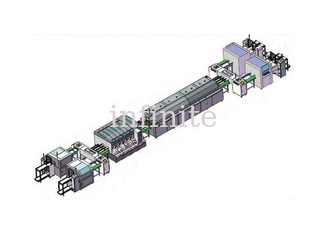

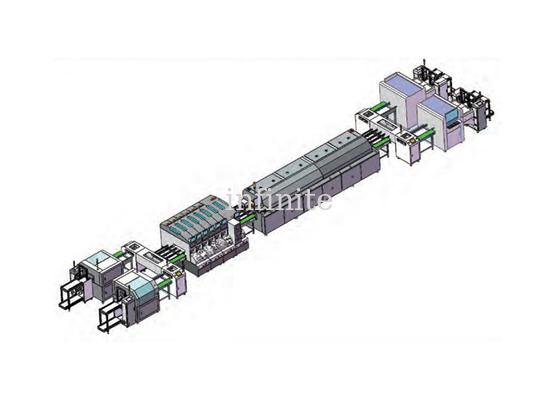

DUAL-TRACK WIRING SCHEME | INFITEK SMT Production Line Solutions
The DUAL-TRACK WIRING SCHEME is an SMT Production Line layout that uses a dual lane mounter and reflow oven and uses INFITEK board handling equipment suitable for a dual lane PCB Production Line. The advantage of this layout is that it doubles the production capacity by adding another SMT assembly line. Also, it saved space due to the use of PCB Shuttle Conveyor, dual-rail pick and place machine, and dual-rail reflow oven. Infitek offers assistance for customers who need a recommendation on the SMT production line complete set-up that will suit their production needs. You can contact us to provide your production requirements and request recommendations.
Recommended INFITEK Board Handling equipment for Dual Track SMT Production Line
| INFITEK Recommended Board Handling Equipment | ||
| Equipment Name | Model | Qty. |
| Standard loading machine | LD-M-TN | 2 |
| lm docking station | BC-100L-N | 4 |
| Translational conveyor | PT-300L-2ATN | 2 |
| Double track docking station | DC-100M-N | 3 |
| NG/OK receiving machine | NL-M-TN | 2 |
