Product Details:
|
| Application: | SMT Production Line Lay-out | Description: | Two-to-One Line With Dual-rail Pick And Place Machine Layout |
|---|---|---|---|
| Warranty: | 1 Year | ||
| Highlight: | Dual-Track Wiring Scheme,High Speed Wiring Scheme |
||
DUAL-TRACK HIGH-SPEED WIRING SCHEME B | INFITEK SMT Production Line Solutions

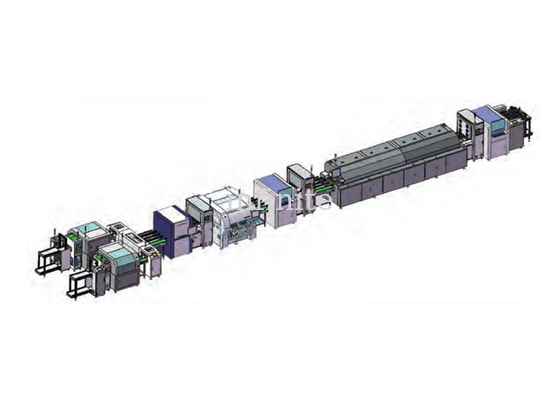

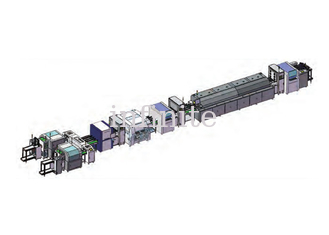

DUAL-TRACK HIGH-SPEED WIRING SCHEME B is an SMT Production Line layout using a dual rail mounter and dual rail reflow. The Type B Dual Lane SMT production line has some additional INFITEK board handling equipment that provides a higher level of protection to PCBs. This production line set-up uses an online PCB cleaner. The Two-to-One Line With Dual-rail Pick and Place Machine Layout is based on the dual-rail chip mounter and dual-rail reflow oven and comes with related dual-rail conveyors for linkage.
Recommended INFITEK Board Handling Equipment for Two-to-One Line With Dual-rail Pick and Place Machine Layout
| INFITEK Recommended Board Handling Equipment | ||
| Equipment Name | Model | Qty. |
| Standard loading machine | LD-M-TN | 2 |
| PCB board cleaning machine | QXN02-XL-TN | 2 |
| 0.6m docking station | BC-060L-N | 2 |
| Translational conveyor | PT-300L-2ATN | 1 |
| Doubletrack docking station | DC-100M-N | 3 |
| NG Buffer lm double track NG Buffer | BNS-100M-TN | 2 |
| lm double track cooling buffer machine | BDS-100M-TN | 1 |
| Doubletrack NG/OK rewinding machine | NLS-M-TN | 1 |
