Product Details:
|
| Application: | SMT Production Line Lay-out | Description: | Multiple Single Lane Production Line And One Dual Lane Reflow Production Line Lay-out |
|---|---|---|---|
| Warranty: | 1 Year | ||
| High Light: | SMT Assembly Line Multi-Line,Inter-Connected SMT Assembly Line |
||

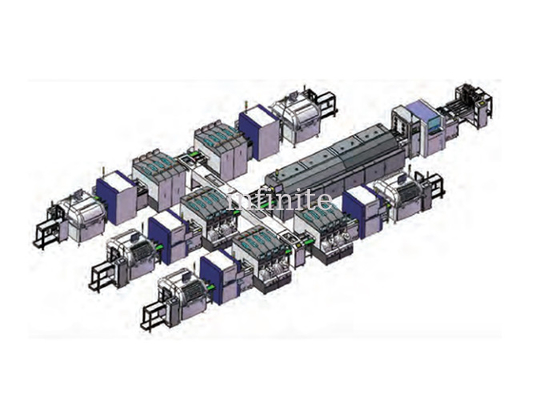

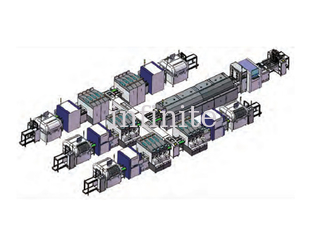

WIRING SCHEME OF MULTI-LINE INTO DUAL-TRACK REFLOW OVEN | INFITEK SMT Production Line Solutions
WIRING SCHEME OF MULTI-LINE INTO DUAL-TRACK REFLOW OVEN is a layout of an SMT Production Line using a Multiple Single Lane Production Line into a Dual Track Reflow Oven. This Layout is designed to combine multiple single-lane mounter production lines. The advantage of this layout is that it successfully makes multiple SMT production lines inter-connected, which greatly increased the production capacity with the lowest operating costs and machine footprints.
Recommended INFITEK Board Handling Equipment for Multiple Single Lane Production line and One Dual Lane Reflow Production Line Layout
| INFITEK Recommended Board Handling Equipment | ||
| Equipment Name | Model | Qty. |
| Standard loading machine | LD-M-TN | 5 |
| 0.6m docking station | BC-060L-N | 10 |
| 0.8m screening machine | RC-080XL-TN | 5 |
| Translational conveyor | PT-650L-2ATN | 1 |
| Double track docking station | DC-100M-N | 1 |
| lm doubletrack cooling buffer machine | BDS-100M-TN | 1 |
| 0.8m doubletrack screening machine | RCS-080M-TN | 1 |
| Doubletrack unwinding machine | BH-M-TN | 1 |
