Product Details:
|
| Application: | SMT Production Line Lay-out | Description: | Multiple SMT Line Combination Layout |
|---|---|---|---|
| Warranty: | 1 Year | ||
| High Light: | Multi-Wire SMT Assembly Line,SMT Assembly Line Three Reflows |
||

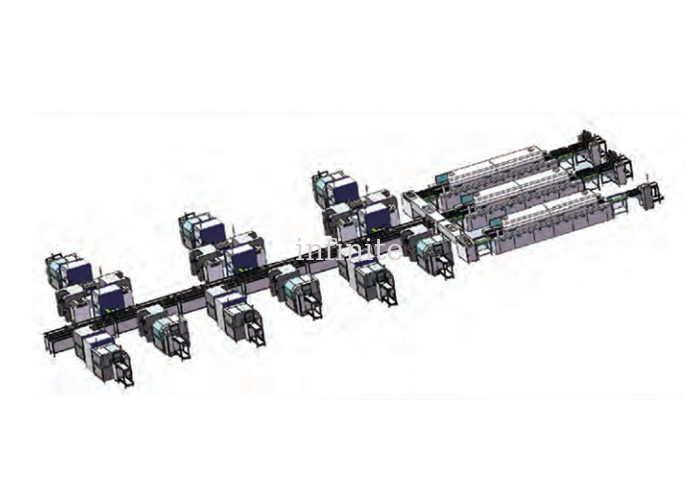

MULTI-WIRE MESH BELT REFLOW OVEN WIRING SCHEME | INFITEK SMT Production Line Solutions
MULTI-WIRE MESH BELT REFLOW OVEN WIRING SCHEME is an SMT Production Line Layout designed for combined SMT Production Lines and uses three Reflows. The layout is designed for multiple complex SMT lines. The advantage of this layout is that it achieves a large complex SMT lines layout in the minimal space taken, which dramatically increased the production capacity with the most efficient layout design.
Recommended INFITEK Board Handling Equipment for Multiple SMT Line Combination Layout
| INFITEK Recommended Board Handling Equipment | ||
| Equipment Name | Model | Qty. |
| 0.6m docking station | BC-060L-N | 21 |
| Translational con veyor | PT-300L-2ATN | 3 |
| Lifting corner machine | CI-330L-N | 12 |
| Translational conveyor | PT-500L-2ATN | 1 |
| Doubletrack docking station | DC-100M-N | 4 |
| lm docking station | BC-100L-N | 2 |
| Doubletrack unwinding g machine | BH-M-TN | 2 |
| Standard unloader | UL-M-TN | 1 |
