Product Details:
|
| Application: | SMT Production Line Lay-out | Description: | Three-to-One Line With Single-rail Pick And Place Machine Layout |
|---|---|---|---|
| Warranty: | 1 Year | ||
| High Light: | Three-to-One SMT Assembly Line,SMT Assembly Line Turntable |
||
THREE-WIRE DOUBLE-TRACK REFLOW OVEN TURNTABLE WIRING | INFITEK SMT Production Line Solutions

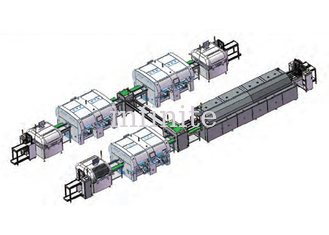

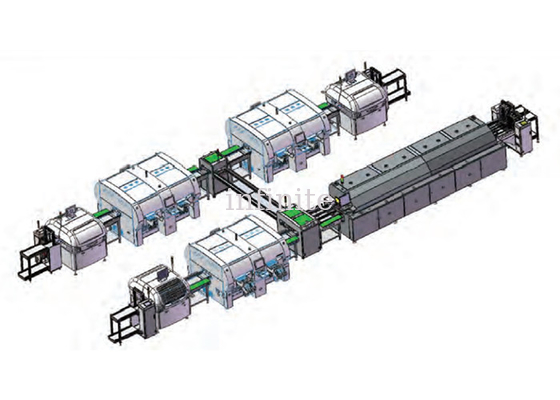

THREE-WIRE DOUBLE-TRACK REFLOW OVEN TURNTABLE WIRING SCHEME is the SMT Production Line layout with three Single Rail Pick and Place Mounter Lines and a Dual Track Reflow Oven. This is a Three-to-One Line With Single-rail Pick and Place Machine and Dual Track Reflow over Layout. The layout is designed for combining three SMT lines into one. The advantage of this layout is that it successfully makes the three SMT production lines inter-connected, which greatly increased the production capacity with the lowest operating costs and machine footprints.
Recommended INFITEK Board Handling Equipment for Three-to-One Line With Single-rail Pick and Place Machine and Dual Track Reflow over Layout
| INFITEK Recommended Board Handling Equipment | ||
| Machine Description | Model | Qty. |
| Standard loading machine | LD-M-TN | 3 |
| lm docking station | BC-100L-N | 6 |
| Monorail corner machine | CN-L-TN | 1 |
| In termediate section conveyor | GQ-300L-N | 1 |
| Double track corner machine | DN-L-TN | 1 |
| Doubletrack dockingstation | DC-100M-N | 1 |
| Doubletrack unwinding machine | BH-M-TN | 1 |
