Product Details:
|
| Features: | PLC+LED Touch Screen Control, Easy To Operate | Application: | PCB Shuttle Conveyor For SMT Production Line Use |
|---|---|---|---|
| Description: | PCB Shuttle Conveyor | Brand: | INFITEK |
| Model: | PT-150M-FATN | PCB Size: | 50*50-450*350 (mm) |
| Warranty: | 1 Year | Reliability: | Design For Industrial Use |
| Packaging: | Wooden Box Package | ||
| Highlight: | PCB Shuttle Conveyor 50*50mm,PLC Control PCB Shuttle Conveyor |
||

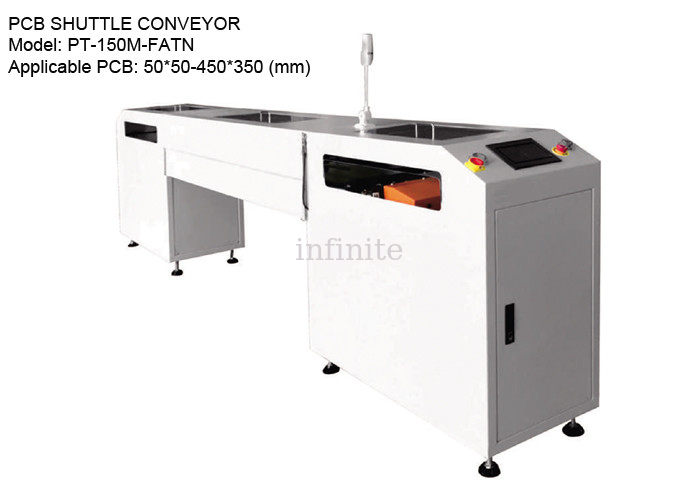

PCB Shuttle Conveyor for 50*50mm up to 450*350mm PCB | INFITEK Board Handling Equipment
INFITEK PT-150M-FATN Shuttle Conveyor is an SMT Board Handling Equipment designed to transfer PCB to another channel of the SMT Production Line. This unit is used to redirect PCBs flow into different channels in a production line and its function is to minimize the transmission gap between conveyors. This SMT Shuttle Conveyor has a fully closed design that ensures a safe level of operation. INFITEK PT-150M-FATN Shuttle Conveyor is designed for PCB sizes from 50*50mm to 450*350mm.
PCB SHUTTLE CONVEYOR
Model: PT-150M-FATN
PCB Size: 50*50-450*350 (mm)
Machine Dimensions: 500*W*1050 (mm)
Machine Weight: 140 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used to redirect PCBs flow into different channels in a production line |
| Cycle time | Depends on the traversing distance |
| Belt type | Round belt or oblate belt |
| Power supply | AC1P110V/220V |
| Power | Max 250VA |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
