Product Details:
|
| Features: | Designed With PLC+LED Touch Screen Control, Easy To Operate | Application: | PCB Shuttle Conveyor For Use In SMT Production Line |
|---|---|---|---|
| Description: | SMT PCB Shuttle Conveyor | Brand: | INFITEK |
| Model: | PT-450L-2ATN | PCB Size: | 50*50-550*350 (mm) |
| Warranty: | 1 Year Warranty | Reliability: | Industrial Use |
| Packaging: | Wooden Box | ||
| Highlight: | Round belt PCB Shuttle Conveyor,PCB Shuttle Conveyor 550*350mm |
||
PCB Shuttle Conveyor for 50*50mm up to 550*350mm PCB | INFITEK Board Handling Equipment
The INFITEK PT-450L-2ATN PCB Shuttle Conveyor is used to transfer PCBs to other channels of the SMT Production Line. This SMT Board Handling Equipment is easy to operate and uses PLC+LED touch screen control. This SMT Conveyor is also designed with sufficient safety features and a fully enclosed design to ensure the safety level. The INFITEK PT-450L-2ATN SMT Shuttle Conveyor is available for PCBs with sizes ranging from 50*50mm to 550*350mm.

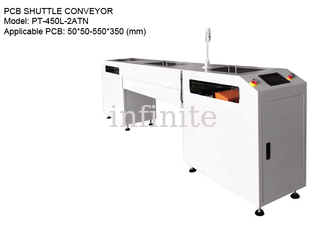

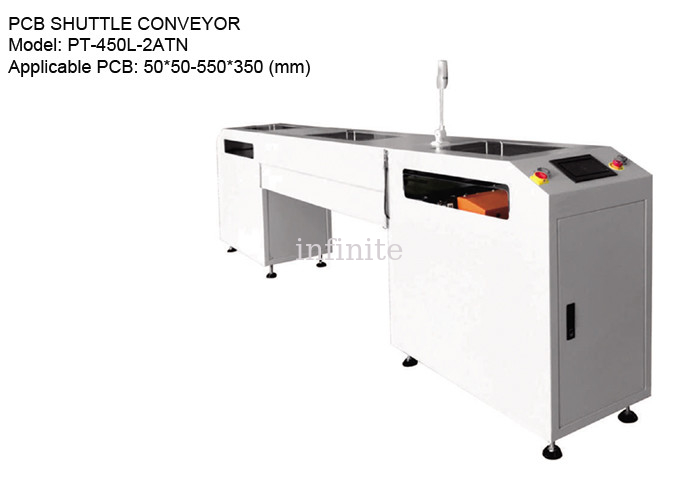

PCB SHUTTLE CONVEYOR
Model: PT-450L-2ATN
PCB Size: 50*50-550*350 (mm)
Machine Dimensions: 600*4500*1050 (mm)
Machine Weight: 280 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used to redirect PCBs flow into different channels in a production line |
| Cycle time | Depends on the traversing distance |
| Belt type | Round belt or oblate belt |
| Power supply | AC1P110V/220V |
| Power | Max 250VA |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
