Product Details:
|
| Features: | This Unit Is Used To Invert PCBs(180 O) For "double-sided" Process | Application: | Double-sided PCB Inverter Conveyor For SMT Production Line Use |
|---|---|---|---|
| Description: | SMT PCB Inverter / PCB Flipper Conveyor | Brand: | INFITEK |
| Model: | BI-460W-TN | Warranty: | 1 Year |
| Reliability: | Industrial Grade | Packaging: | Wooden Box |
| High Light: | Double-Sided PCB Shuttle Conveyor,PCB Shuttle Conveyor SMEMA,PCB Inverter 550*460mm |
||
SMT Production Line PCB Inverter for 50*50mm up to 550*460mm PCB size | INFITEK Board Handling Equipment
INFITEK BI-460W-TN PCB Inverter Conveyor is a Board Handling Equipment used in this SMT Production Line. This PCB Flipper Conveyor is a piece of necessary equipment for SMT production lines that use double-sided PCBs. INFITEK BI-460W-TN Automatic PCB Inverter Conveyor is designed for PCBs with sizes from 50*50mm to 550*460mm max size. This board handling equipment is easy to operate, easy to maintain, and has a fully enclosed design and an openable top cover to ensure a high level of safety during operation.

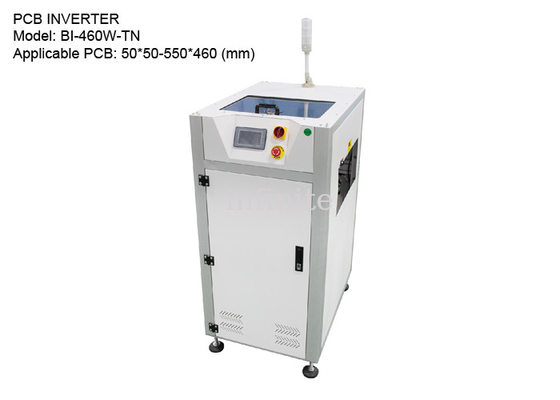

PCB INVERTER / PCB Fliffer Conveyor
Model: BI-460W-TN
Applicable PCB sizes: 50*50-550*460 (mm)
Machine Dimensions: 600*856*1250 (mm)
Machine Weight: Approx. 160 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used to invert PCBs(180 degrees) for the "double-sided" process |
| Cycle time | Approx.10 seconds |
| Belt type | oblate belt |
| Power supply | AC1P110V/220V |
| Power | Max 150VA |
| Air pressure | 4-6bar, 1.1ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
| SPECIFICATIONS | |||
| Model |
Dimension (L*W*H MM) |
PCB size (MM) | Weight (KG) |
| BI-350W-TN | 500*725*1250 | 50*50-445*350 | 120 |
| BI-460W-TN | 600*856*1250 | 50*50-550*460 | 160 |
