Product Details:
|
| Features: | User Friendly “soft-touch” LED Control Membrane Control Panel | Application: | Automatic PCB Elevator Conveyor For Use In SMT Production Line |
|---|---|---|---|
| Description: | Automatic PCB Elevator | Brand: | INFITEK |
| Model: | PD-L-BN | PCB Size: | 50*50-460*350 (mm) |
| Warranty: | 1 Year Warranty | Reliability: | Industrial Use |
| Packaging: | Wooden Box | ||
| Highlight: | PCB Shuttle Conveyor Brake Motor,Automatic PCB Shuttle Conveyor,SMT Production Line 460*350mm |
||
SMT production Line Automatic PCB Elevator Conveyor for 50*50-460*350mm PCBs |INFITEK Board Handling Equipment
INFITEK PD-L-BN Automatic Elevator is a Board Handling Equipment used in SMT Production Line. This PCB conveyor serves as an automatic PCB Elevator that transports PCB and redirects PCB flow to different heights in the Production Line. The INFITEK PD-L-BN Automatic PCB Elevator Conveyor is easy to operate and ensures a safe design. It has a fully enclosed design and uses movement limit sensors to ensure a high level of safety. The top cover has an opening to easily access the inside of the machine for maintenance. INFITEK PD-L-BN Automatic Elevator is designed for PCBs with sizes from 50*50mm to 460*350mm.

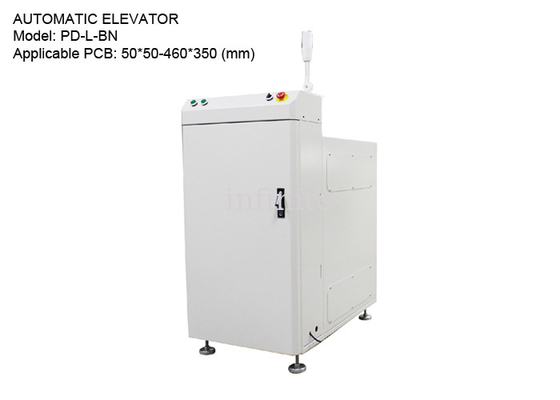

AUTOMATIC ELEVATOR
Model: PD-L-BN
PCB Size: 50*50-460*350 (mm)
Machine Dimensions: 500*920*H (mm)
Machine Weight: 140 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used to redirect PCBs flow to different heights in a production line |
| Cycle time | Depends on the lifting distance |
| Belt type | Round belt or oblate belt |
| Power supply | AC1P110V/220V |
| Power | Max 250VA |
| Transport direction | From left to right or right to left |
