Product Details:
|
| Features: | Suitable For 32,44,56,72mm Plastic Tapes With Holes On Both Sides | Application: | Automatic Splicing Machine Use For SMD Tape Components |
|---|---|---|---|
| Description: | Automatic Splicing Machine | Model: | MTJL3272-W |
| SMD Tape Sizes: | 32mm , 44mm , 56mm , 72mm | Brand: | INFITEK |
| Warranty: | 1 Year Warranty | Reliability: | Industrial Use |
| Packaging: | Wooden Box | ||
| High Light: | Auto Splicer Machine 44mm,Auto Splicer Machine 56mm,SMD Tape Automatic Slicer Machine |
||
Automatic Splicing Machine for 32mm, 44mm, 56mm, and 72mm plastic tapes with holes on both sides | INFITEK SMT Solutions
The INFITEK MTJL3272-W Automatic Splicing Machine is a type of special equipment made to speed up the previously manual splicing of reel tape components used in SMT mounting machines. With the Automatic Splicing Machine, high splicing accuracy can be maintained and time spent on material preparation can be reduced. INFITEK MTJL3272-W Automatic Splicing Machine is designed to be Suitable for 32,44,56,72mm plastic tapes with holes on both sides.

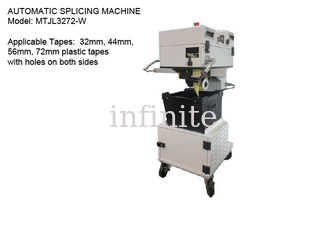

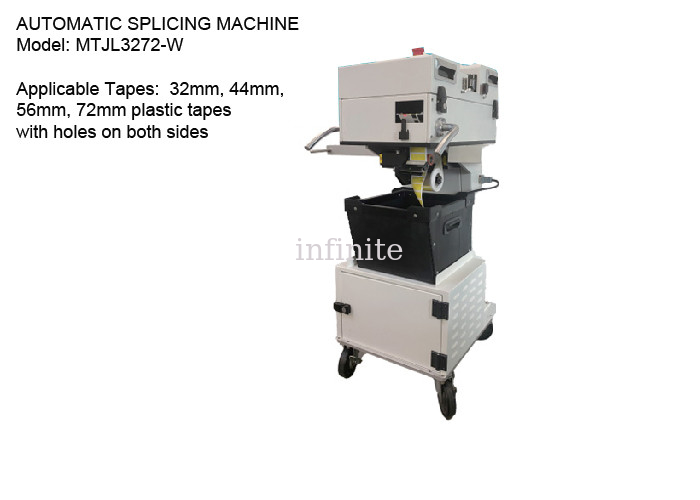

AUTOMATIC SPLICING MACHINE
Brand: INFITEK
Model: MTJL3272-W
Applicable Tape Size: 32mm, 44mm, 56mm, and 72mm plastic tapes with holes on both sides
Specifications:
| Model | MTJL3272-W |
| Equipment size | 400mmx460mmxH950mm |
| Working height | 900mm |
| equipment weight | 50KG |
| Electric booster wheel | None, manual push and pull |
| Applicable placement machine | Applicable to any type of placement machine |
| Applicable material belt | Suitable for 32,44,56,72mm plastic tapes with holes on both sides |
| Receiving method | Automatic riveting of copper buckles on both sides; feeder automatic filming and manual attachment |
| Length of splicing piece | 45X17mm |
| Splice accuracy | ±0.2mm |
| Empty material detection method | none |
| Number of CCD | none |
| Picking cycle | 6sec (excluding manual work time) |
| Incoming material film | Coil |
| Number of films | 1 |
| Incoming copper buckle | Flakes |
| Pass rate | 99% |
| Docking system | none |
| computer | none |
| Display Optional | 7-inch touch screen |
| Power supply | 48V lithium battery X2 |
| Battery operation time | 30hr |
| Cutting method Manual | cutting |
| Equipment warranty Equipment warranty for | 1 year |
| Other extended configuration | External mains, receiving clamp, right receiving arm, material box. etc. |
