Product Details:
|
| Features: | User Friendly Soft Touch LED Membrane Control Panel | Application: | SMT Magazine Loader And Unloader Systems |
|---|---|---|---|
| Description: | Magazine Type PCB Loader Loader | Brand: | INFITEK |
| Model: | LD-XXL-TN | PCB Size: | 50*80-610*460 Mm |
| Warranty: | 1 Year Warranty | Reliability: | Design For Industrial Use |
| Packaging: | Wooden Crate Or Wooden Box | ||
| High Light: | 610*460mm SMT Magazine Loader,SMT Magazine Loader XXL,SMT Loader Machine |
||
Automatic Magazine Type PCB Loader for XXL-size PCBs - 50*80-610*460mm PCB Sizes | INFITEK Board Handling Equipment
SMT PCB Magazine Loader is used in SMT production PCB transfer. The Automatic Loader and Unloader is designed for loading and unloading PCBs, an arriving PCB is taken up by the attached conveyor and then pushed into the magazine by a specially designed pusher. The magazine indexes to the next position and is ready for the following unloading cycle. Connect with SMT and AI production line, safety design ensure not to break any PCB when it is pushed and thus reduce defect rate. Agility operation with high accuracy, automatic counting, and fault alarm functions, is required for a full range of automatic equipment. Infinite Automation SMT PCB Magazine Loader Loader is an easy-to-use link conveyor and equipped with soft touch LED membrane control panel.

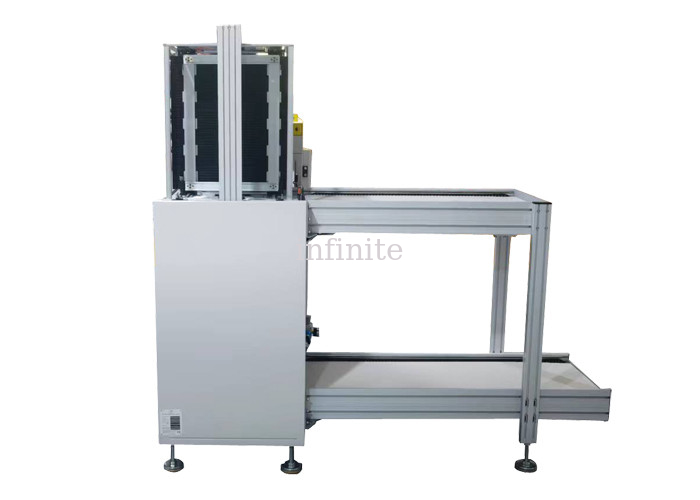

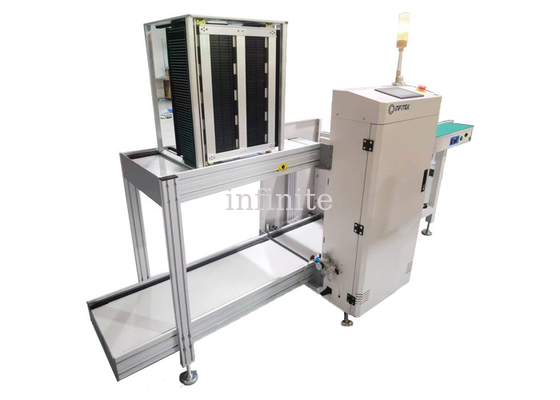

SMT PCB Magazine Loader
Model: LD-XXL-TN
Applicable PCB Sizes: 50*80-610*460 (mm)
PCB Magazine Size: 630*530*563 (mm)
Machine Dimensions: 2065*1230*1250 (mm)
Machine Weight: 350 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for loading and of PCBs using a PCB Magazine |
| No. of magazine | Loader: upper 1, lower 2 / Unloader: upper 1, ,lower 1 |
| Time feed PCB | Seconds 6 Approx. or specify |
| Magazine replacement time indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max300VA |
| Air pressure | 4-6bar,10ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
Operation Diagram:
