Automatic Magazine Type PCB Loader for XL-size PCBs - 50*80-530*460mm PCB Sizes | INFITEK Board Handling Equipment

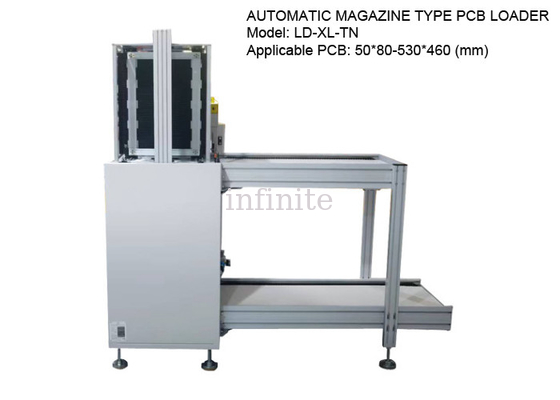

The INFITEK LD-XL-TN Automatic Magazine PCB Loader is designed to transfer PCBs to their next process from being stacked in PCB magazines. This board handling process is suitable for SMT Production Lines that produce double-sided PCBs. The LD-XL-TN model is designed for use with up to XL-size PCBs. The adjustable rail width of this board handling equipment can accommodate PCBs ranging in size from the smallest PCB sizing 50*80mm to 530*460mm max size.
SMT PCB Magazine Loader
Model: LD-XL-TN
Applicable PCB Sizes: 50*80-530*460 (mm)
PCB Magazine Size: 535*530*563 (mm)
Machine Dimensions: 1800*980*1250 (mm)
Machine Weight: 300 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for loading and of PCBs using a PCB Magazine |
| No. of magazine | Loader: upper 1, lower 2 / Unloader: upper 1, ,lower 1 |
| Time feed PCB | Seconds 6 Approx. or specify |
| Magazine replacement time indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max300VA |
| Air pressure | 4-6bar,10ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
Operation Diagram:
