Product Details:
|
| Features: | PCB Capacity - 400pcs (0.6mm Thick PCB) | Application: | SMT PCB Board Stacking Machine |
|---|---|---|---|
| Description: | Stacker And Destacker | Model: | LC-460W-TN (Upper) |
| PCB Size: | 50*50 - 460*460 | Brand: | INFITEK |
| Warranty: | 1 Year | Reliability: | Design For Industrial Use |
| Packaging: | Wooden Box Package | ||
| Highlight: | 50*50mm SMT Magazine Loader,SMT Magazine Loader CE,Upper PCB Stacker |
||

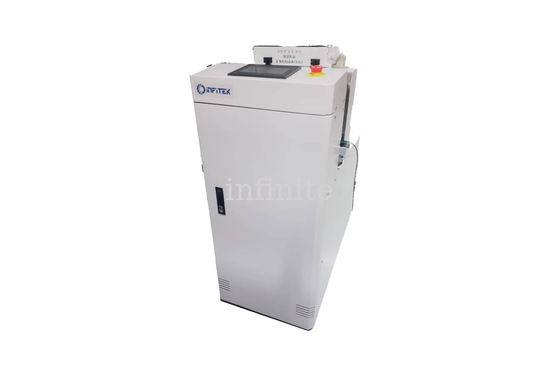

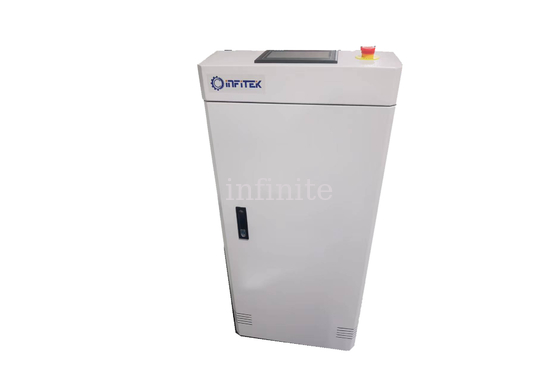

Upper PCB Stacker / PCB Destacker for 50*50mm to 460*460mm PCBs | INFITEK Board Handling Equipment

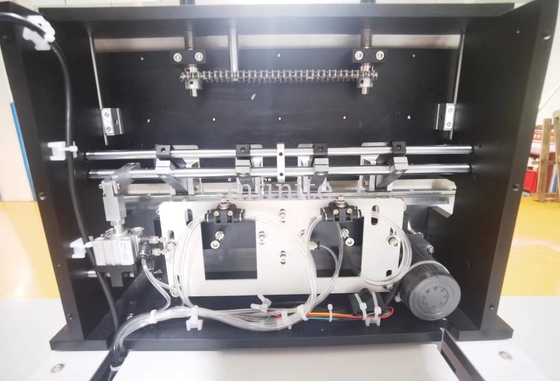

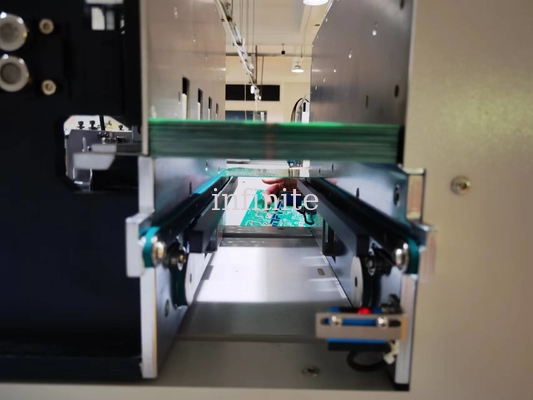

INFITEK Stacked Upper Board is an SMT link conveyor used to operate the upper boards of the production line. This SMT PCB Stack conveyor is capable of loading up to 400 pcs. PCBs with 0.6mm thickness. INFITEK Stacked Upper and Lower Board have a user-friendly interface. A soft-touch LED control panel or touch screen monitor can be selected. A stepper motor provides smooth and precise PCB translation. Made of aluminum structure and a weighted bottom design to provide stability and not easy to shift from its position. Infinite Automation provides high-quality and durable SMT link conveyors and production line machines and equipment. Contact us to learn more about the INFITEK Stacked Upper and Lower Board is an SMT link conveyor.
Stacker And Destacker SMT PCB Stacking Machine SMT Link Conveyor
Model: LC-460W-TN (Upper)
PCB Size: 50*50 - 460*460
Capacity: 400pcs (0.6mm thick PCB)
Machine Dimensions: 550*889*1200 (mm)
Machine Weight: Approx. 200 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This equipment is used to operate the upper and lower boards of the production line |
| Cycle time | Approx. 10 seconds or specify |
| Maximum PCBs capacity | 400pcs (0.6mm thick PCB) |
| Power supply | AC1P110V/220V |
| Power | Max 100VA |
| Air pressure | 4-6bar,30ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
| SPECIFICATIONS | |||
| Model | Dimension (L*W*H MM) | PCB size (MM) | Weight (KG) |
| LC-460W-TN (Upper) | 550*889*1200 | 50*50 - 460*460 | 200 |
| LC-460W-TN (Lower) | 503*889*1200 | 50*50 - 460*460 | 180 |
