Product Details:
|
| Features: | Durable - Long Service Life | Application: | Compact Size PCB Loader In SMT Production Line |
|---|---|---|---|
| Description: | Compact PCB Loader Machine | Model: | LT-LL-TN |
| Brand: | INFITEK | Warranty: | 1 Year |
| Reliability: | Design For Industrial Use | Packaging: | Wooden Box Package |
| High Light: | PCB Loader Unloader 530*390mm,PCB Loader Unloader,Loader SMT |
||

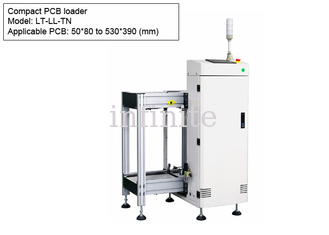

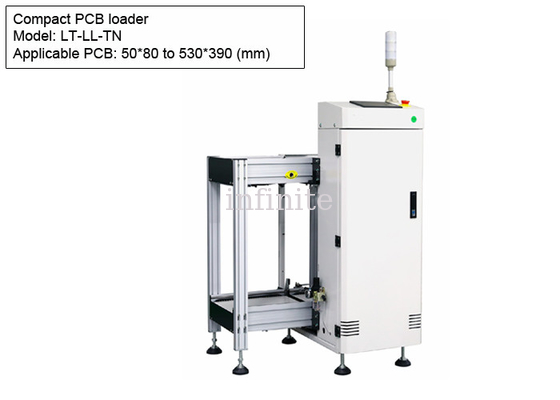

Compact PCB Loader applicable to 50mm x 80mm to 530mm to 390mm PCB sizes
INFITEK LT-LL-TN is a small-size PCB Loader ideally suited for SMT Production Lines with limited space. The INFITEK Compact PCB Loader has different models designed for different sizes of PCBs. The LT-LL-TN model is suitable for PCBs ranging in size from 50mm x 80mm to 530mm to 390mm. INFITEK is a China-based manufacturing company that produces a variety of SMT Board Handling Equipment and machines for use in the Electronic Products Manufacturing Process.
Equipment Name: Compact PCB Loader
Brand: INFITEK
Model: LT-LL-TN
Applicable PCB Sizes: 50*80 - 530*390 (mm)
PCB Magazine Size: 535*460*563 (mm)
Machine Size: 1300*909*1250 (mm)
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for loading and unloading PCBs |
| No. of magazine | 1 Upper conveyor: 1 magazine Lower conveyor: 2 magazine |
| Time feed PCB | Seconds 6 Approx. or specify |
| Magazine replacement time indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max300VA |
| Air pressure | 4-6bar,10ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
