Product Details:
|
| Features: | Durable - Long Service Life | Application: | PCB Loader In SMT Production Line |
|---|---|---|---|
| Description: | Compact PCB Loader | Model: | LT-M-TN |
| Brand: | INFITEK | Warranty: | 1 Year |
| Reliability: | Design For Industrial Use | Packaging: | Wooden Box Package |
| Highlight: | Compact SMT Magazine Loader,SMT Magazine Loader PLC,PCB Magazine Loader Omron Relay |
||
INFITEK LT-M-TN Compact PCB Loader applicable for 50mm x 80mm to 330mm x 250mm PCB sizes

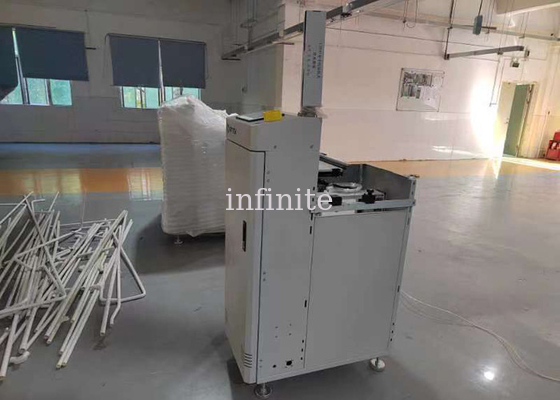

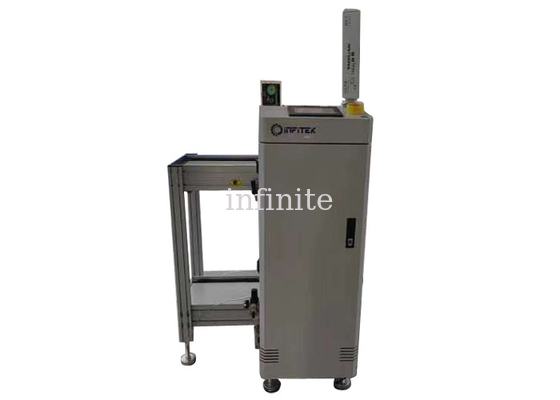

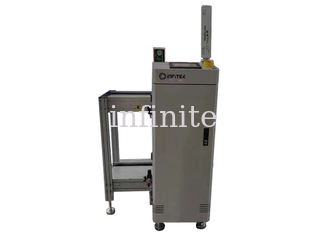

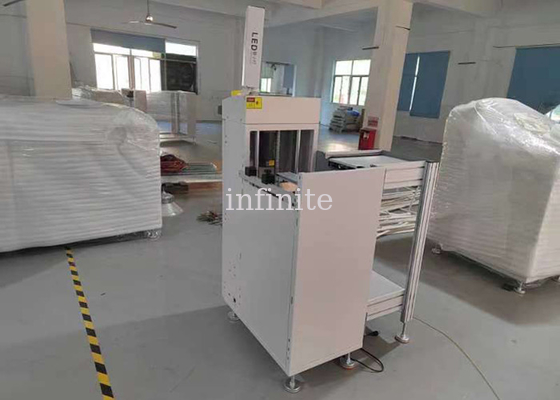

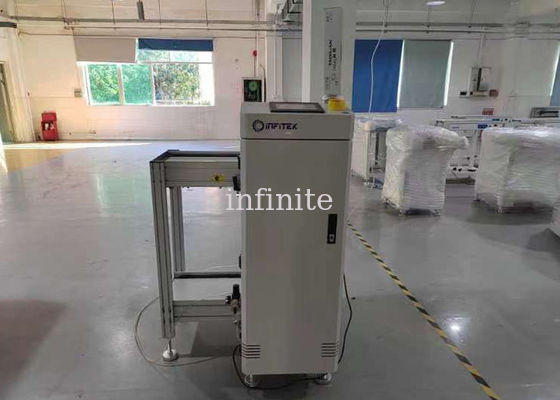

INFITEK LT-M-TN Compact PCB Loader is an SMT Board Handling Equipment designed to load PCB using PCB magazine in the first process in the SMT production line. One of the Features of the INFITEK Compact PCB Loading Machine is that it occupies a smaller area compared to the regular PCB Magazine Loader so it is more suitable for SMT production lines with limited production space.
Equipment Name: Compact PCB Loader
Brand: INFITEK
Model: LT-M-TN
Applicable PCB Sizes: 50mm x 80mm to 330mm x 250mm
PCB Magazine Size: 355*320*563mm
Machine Dimensions: 850*765*1250mm
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for loading and unloading PCBs |
| No. of magazine | 1 Upper conveyor: 1 magazine Lower conveyor: 2 magazine |
| Time feed PCB | Seconds 6 Approx. or specify |
| Magazine replacement time indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max300VA |
| Air pressure | 4-6bar,10ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
