Product Details:
|
| Features: | PCB Capacity - 400pcs (0.6mm Thick PCB) | Application: | SMT PCB Board Stacking Machine |
|---|---|---|---|
| Description: | PCB Stacker And Destacker | Model: | LC-460W-TN (Lower) |
| PCB Size: | 50*50 - 460*460 (mm) | Brand: | INFITEK |
| Warranty: | 1 Year Warranty | Reliability: | Industrial Use |
| Packaging: | Wooden Box | ||
| Highlight: | Lower PCB Stacker,PCB Stacker 50*50mm,PCB Destacker |
||

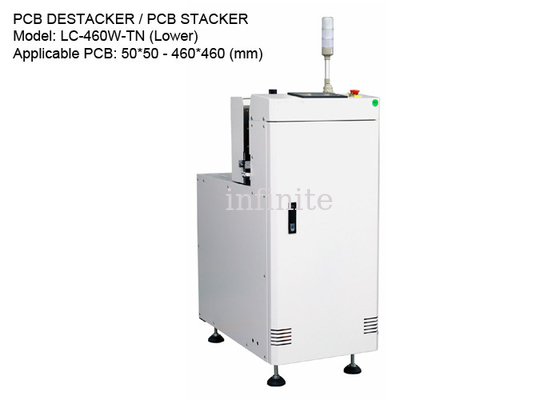

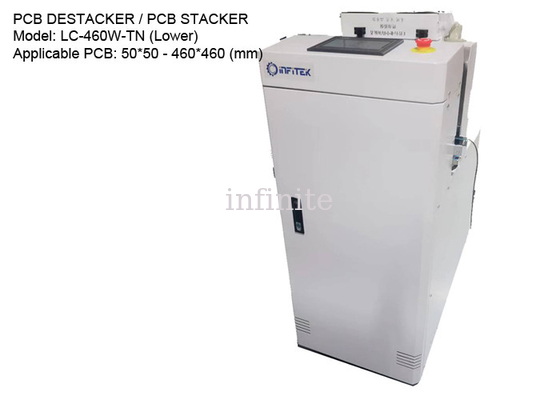

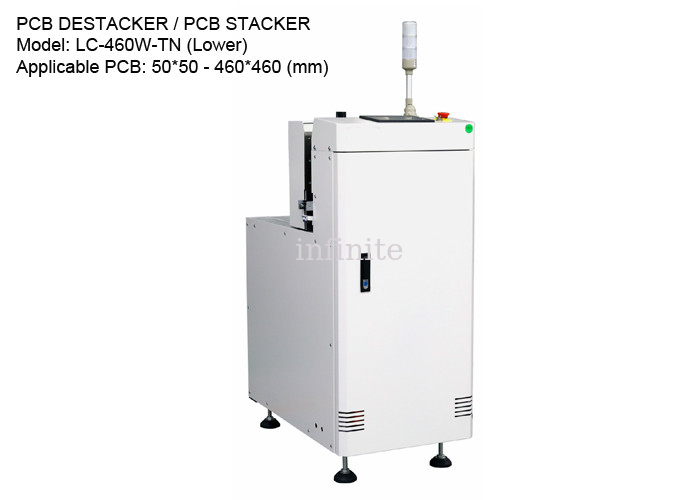

Lower PCB Stacker / PCB Destacker for 50*50mm to 460*460mm PCBs | INFITEK Board Handling Equipment
INFITEK LC-460W-TN (Lower) is the model designed to be used as PCB Stacker or Destacker for the SMT production line PCB transfer process. This unit is used for the automatic loading operation of PCBs to the next process. INFITEK Stacker/Destacker is designed to be easy to operate and uses MCGS Touch Screen and Panasonic PLC Control and OMRON Relay. The INFITEK LC-460W-TN (Lower) Automatic PCB Stacker/Destacker is designed with high quality, reliable durability, and high safety features to provide operational efficiency and safety. The LC-460W-TN (Lower) PCB Stacker and Destacker Machine is available for PCBs with sizes of 50*50 - 460*460mm and has the capacity to stack up to 400 pcs. PCBs. ((0.6mm thick PCB).
Stacker And Destacker SMT PCB Stacking Machine SMT Link Conveyor
Model: LC-460W-TN (Lower)
PCB Size: 50*50 - 460*460 (mm)
Capacity: can accommodate up to 400pcs. max quantity (0.6mm thick PCBs)
Machine Dimensions: 550*889*1200 (mm)
Machine Weight: Approx. 200 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This equipment is used to operate the upper and lower boards of the production line |
| Cycle time | Approx. 10 seconds or specify |
| Maximum PCBs capacity | 400pcs (0.6mm thick PCB) |
| Power supply | AC1P110V/220V |
| Power | Max 100VA |
| Air pressure | 4-6bar,30ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
| SPECIFICATIONS | |||
| Model |
Dimension (L*W*H MM) |
PCB size (MM) | Weight (KG) |
| LC-460W-TN (Upper) | 550*889*1200 | 50*50 - 460*460 | 200 |
| LC-460W-TN (Lower) | 503*889*1200 | 50*50 - 460*460 | 180 |
Operation Diagram:
