Product Details:
|
| Features: | Three Operation Modes: FIFO, LIFO, Pass-through | Application: | PCB Buffer Conveyor Between SMT Machines. |
|---|---|---|---|
| Description: | Multifunctional Vertical Buffer | Brand: | INFITEK |
| Model: | BD-L-TN | Warranty: | 1 Year Warranty |
| Reliability: | Design For Industrial Use | Packaging: | Wooden Box Package |
| High Light: | Multifunctional PCB Buffer Conveyor,Vertical PCB Buffer Conveyor |
||

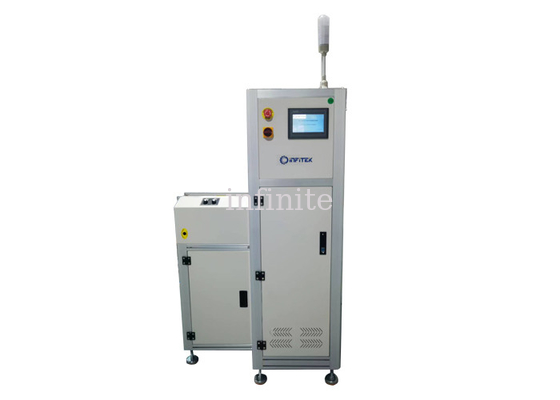

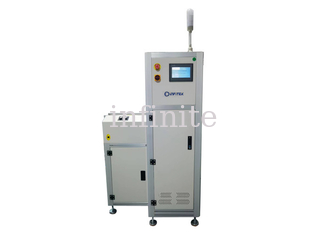

SMT Multifunctional Vertical Type Buffer for 50*50-445*350mm PCBs | INFITEK Board Handling Equipment
INFITEK BD-L-TN Multifunctional Vertical Buffer is a PCB buffer machine used in the SMT production line. It is placed between the SMT machines and acts as a buffer machine for the PCB. The main function of this Multifunctional Buffer Conveyor is to temporarily collect PCBs while waiting for the next process while maintaining the direct operation of other SMT machines. INFITEK BD-L-TN Multifunctional Vertical Buffer is the model designed for PCBs with sizes 50*50-445*350mm. This board handling equipment has a user-friendly operation interface and can be used in three operation modes - FIFO, LIFO, and Pass-through mode.
MULTIFUNCTIONAL VERTICAL TYPE BUFFER
Model: BD-L-TN
Applicable PCB Sizes: 50*50-445*350 (mm)
Machine Dimensions: 1000*790*1640 (mm)
Machine Weight: 190 kg.
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used as a buffer between SMT machine |
| Cycle time | Approx.10 seconds |
| Maximum PCBs magazine | 25pcs or specify |
| Power supply | AC1P110V/220V |
| Power | Max 250VA |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
