Product Details:
|
| Application: | Dual Lane NG Buffer Conveyor For SMT Production Line | Description: | Dual Lane NG Buffer Conveyor (with Extension Conveyor) L Size PCB |
|---|---|---|---|
| Model: | BN-L-DTN | Brand: | INFITEK |
| Warranty: | 1 Year Warranty Period | Reliability: | For Industrial Use - Durability Tested |
| Packaging: | Wooden Crate | ||
| Highlight: | L Size NG Buffer,NG Buffer soft touch,Dual Lane Extension Conveyor |
||

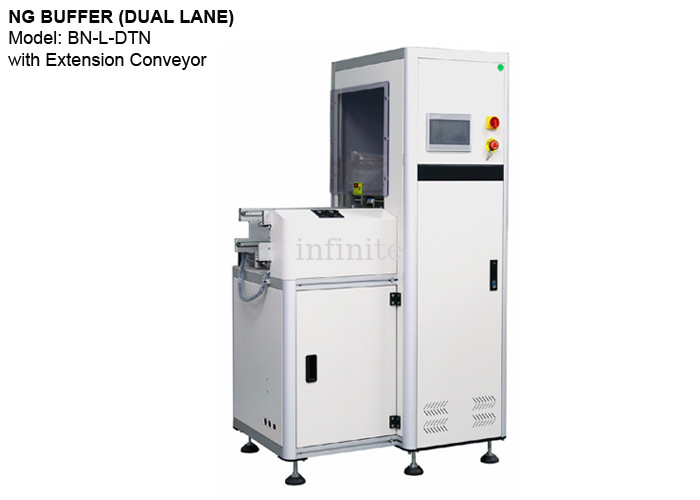

Dual Lane NG Buffer with extension conveyor for L-size PCB | INFITEK Board Handling Equipment
INFITEK BN-L-DTN is an NG buffer machine used in dual-lane SMT Production Line. This equipment is used for post-printing SPI, pre-furnace AOI, and post-furnace AOI; used to collect NG, and OK board cache . INFITEK DUAL LANE NG PCB Buffer Machine uses wear-resistant anti-static belts for transmission and belt replacement is very easy. This board handling equipment is also designed to be user-friendly and easy to operate. Three operation modes can be set - FIFO , LIFO, and Pass-through.
Machine Name: NG Buffer Conveyor (Dual Lane)
Model: BN-L-DTN
For L-size PCB
Features:
| TECHNICAL PARAMETERS | |
| Description | This unit is used for the automatic loading operation of double-sided boards and transceiver board |
| No. of magazine | Upper Conveyor: 1 magazine, Lower Conveyor: 1 magazine |
| Magazine replacement time | Approx.30 seconds or specify |
| Indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max 300VA |
| Air pressure | 4-6bar,10ltr/min max |
| Transport height | 900±20mm (or customized) |
| Transport direction | From left to right or right to left |
Operation Diagram:
